Z1231

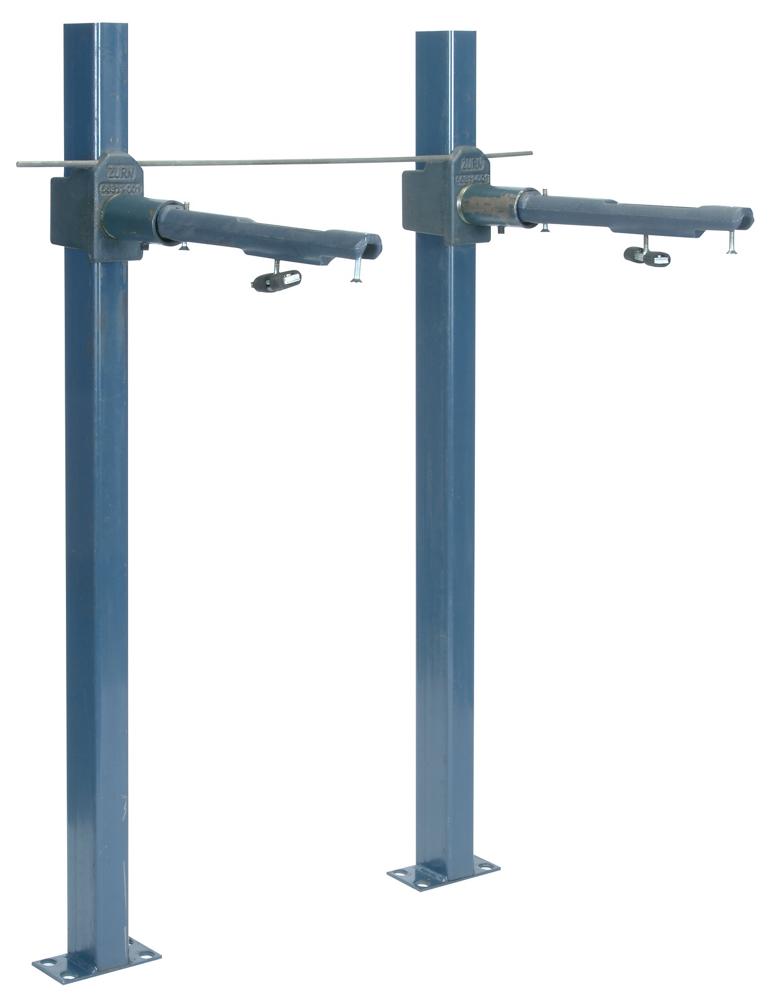

Concealed Arm Lavatory Carrier

The Zurn Z1231 concealed arm wall lavatory system used to provide structural support for wall hung lavatories.

Read More

Where to Buy
  • Rectangular uprights provide for rigid installation
  • 250 lb. load rating
  • Carrier code book provides users with the right configuration for the application
  • Third party certified thru IAPMO
  • Custom-length plates available to facilitate pre-fabrication applications.

Frequently Asked Questions

The Z1231 carrier is tested in accordance with the ASME A112.6.1 standard.  It passes a 250 lb. load rating before reaching the maximum allowable deflection criteria of 3/8" downward and 1/8" forward.

​Replacement carrier arms can be ordered as a lone item.  Please refer to the Zurn carrier code book online to determine which arm part number is needed for the specific fixture model you are using.  Once you identify the correct part number, you can contact your local Zurn Sales Representative to place the order.  Please follow this link to the Zurn Carrier Code Book: Zurn Carrier Code Book

Based on the 3-7/16" overall depth dimension, the Z1231 carrier can fit entirely within an enclosed 2" x 4" wall.  Click the link below to access the submittal sheet for additional details. http://content.zurn.com/web_documents/pdfs/specsheets/58855.pdf
