Z1801-12S

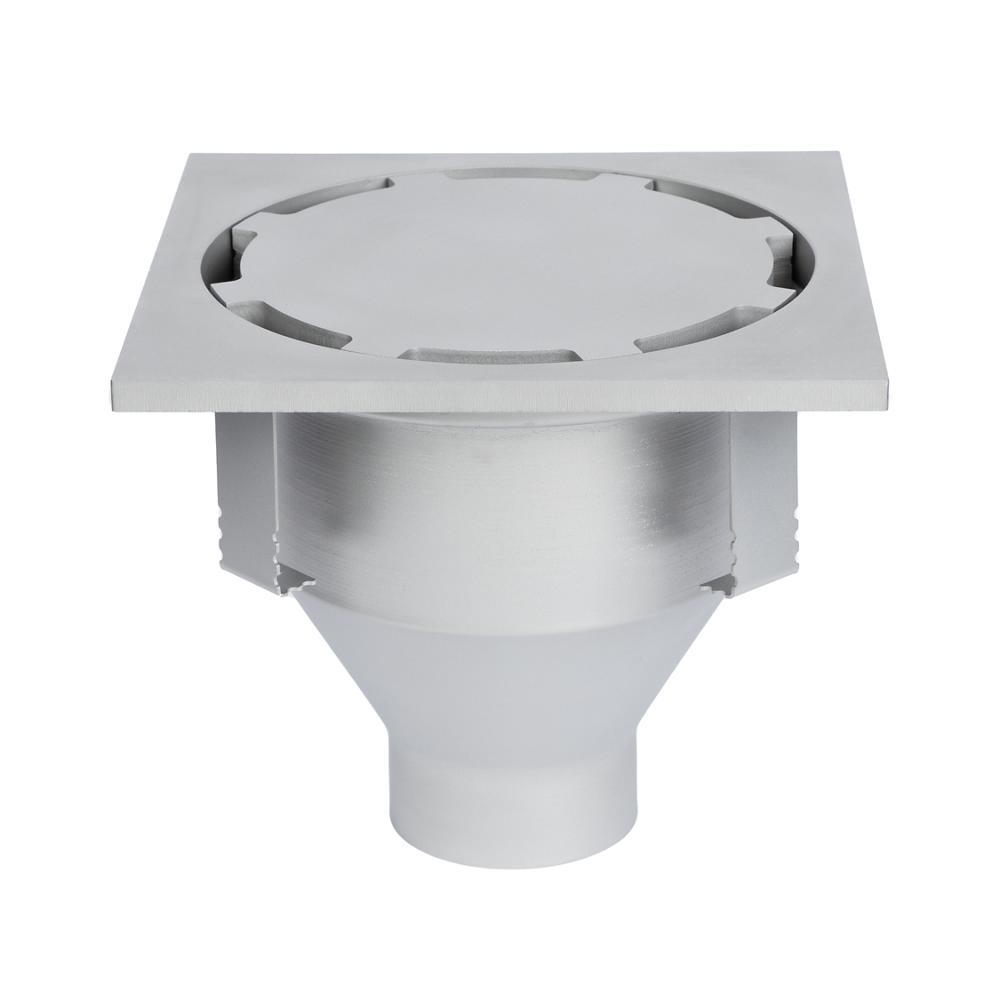

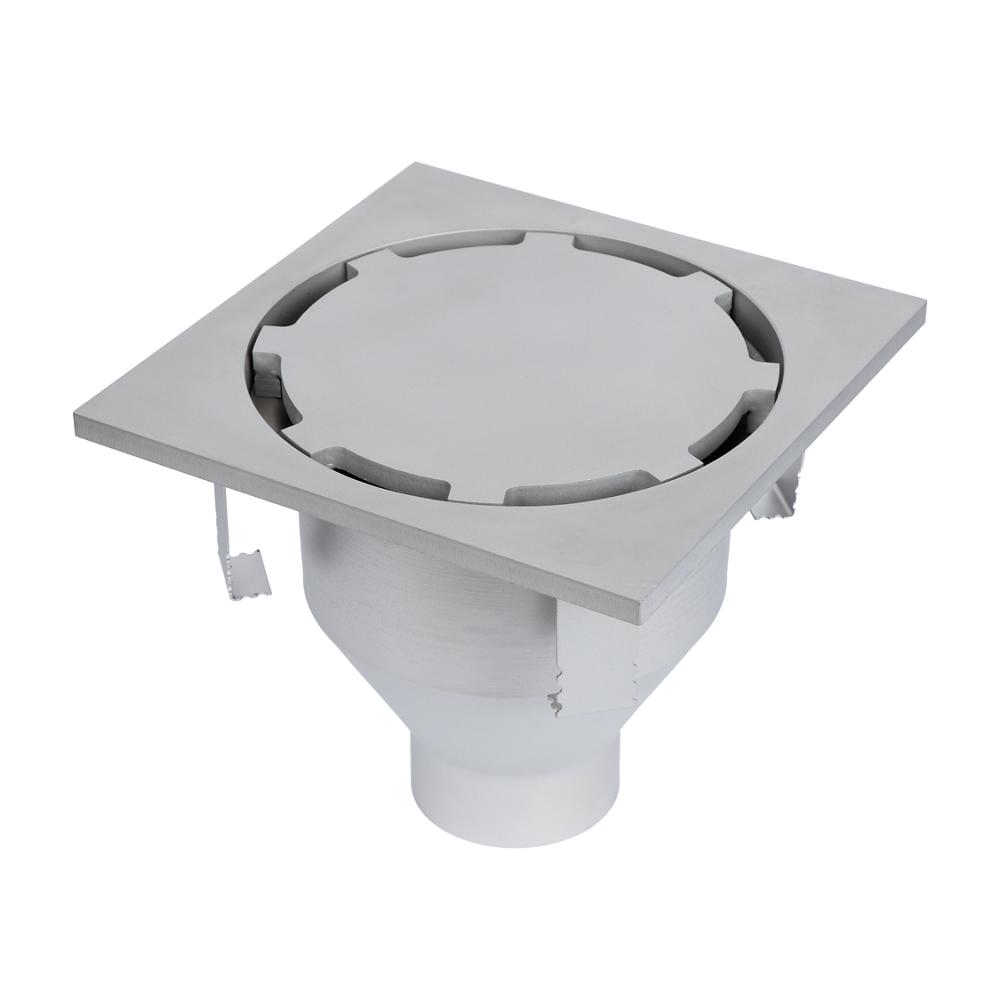

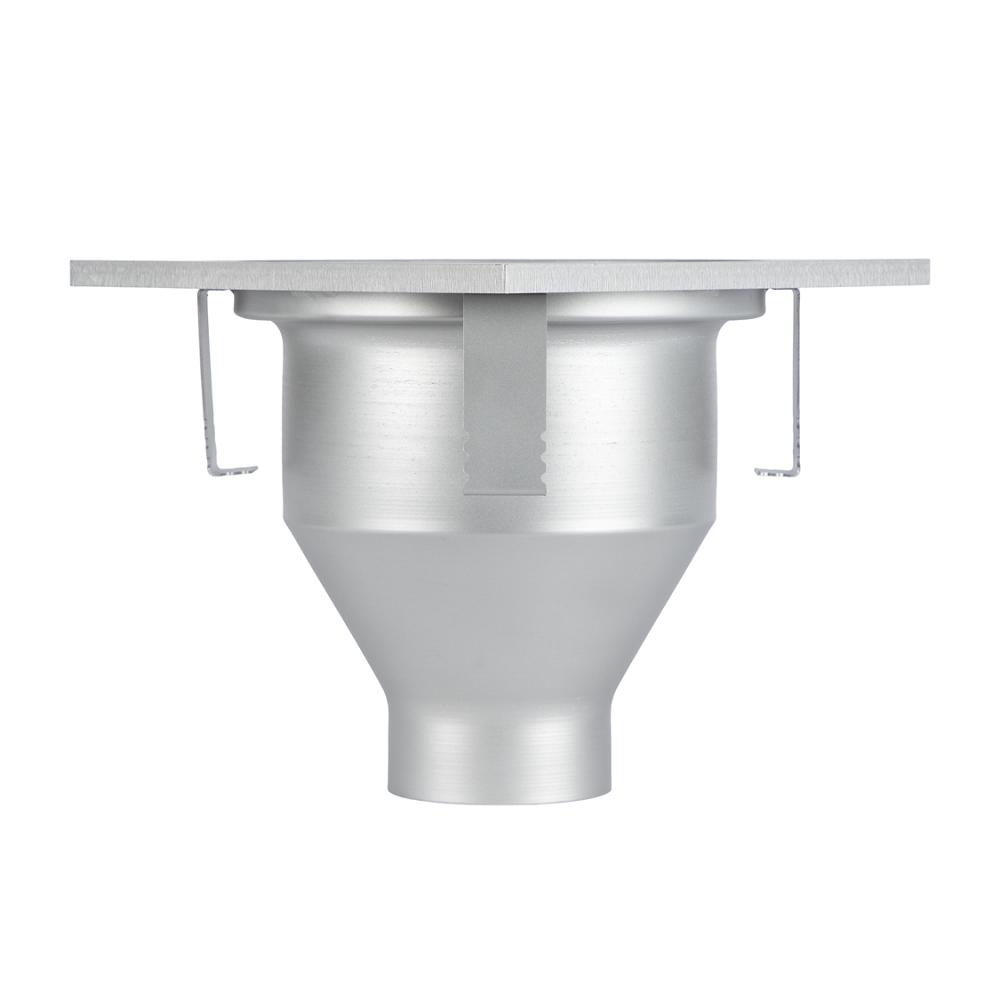

12" X 12" Square Industrial Deep Sump Conical Sanitary Floor Drain

Engineered to deliver a superior sanitary experience, the Z1801-12S square industrial deep sump conical sanitary floor drain offers simplicity in design and construction at a cost-effective value.

Read More

Where to Buy
  • Deep sump conical bottom reduces splash back in direct discharge applications
  • 12 ga. seamless drain body construction reduces potential bacteria-harboring points
  • Load rated for heavy equipment traffic per ASME A112.6.3 - 7,500 to 10,000 lb.
  • Available in 304 or 316 stainless steel

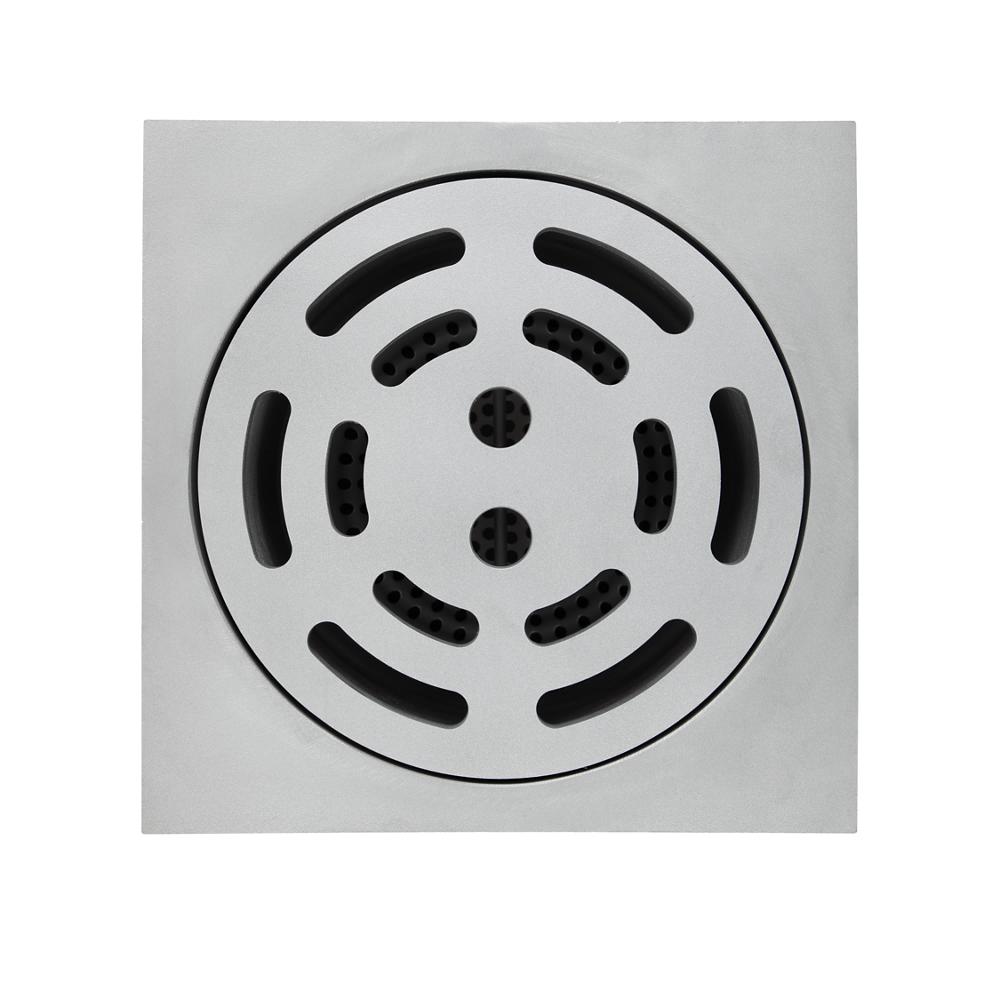

  • Choose between extra heavy-duty slotted or perimeter gap grate, medium-duty perforated grate, 3/4 or 1/2 grate
  • Available with 2", 3", or 4" No-Hub (Schedule 10) or Butt-Weld (Schedule 40) outlets

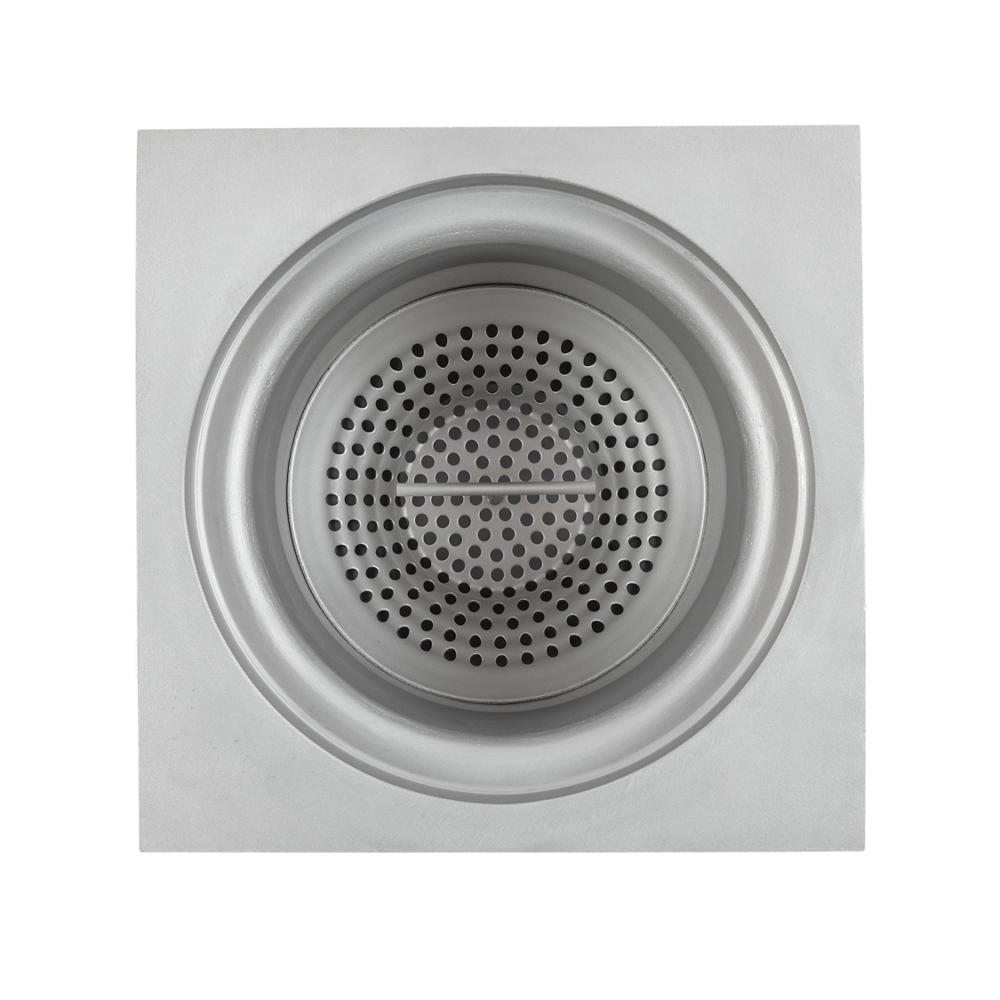

  • Comes standard with perforated removable sediment basket with lift-handle for ease of use
  • Configure with EZ Magnetic Lock Secondary Strainer for added drain line protection
  • Bead blasted, industrial satin finish
  • Meets USDA guidelines
+ View More Features
