Z1809

12" Round Industrial Conical Double Containment Sanitary Floor Drain

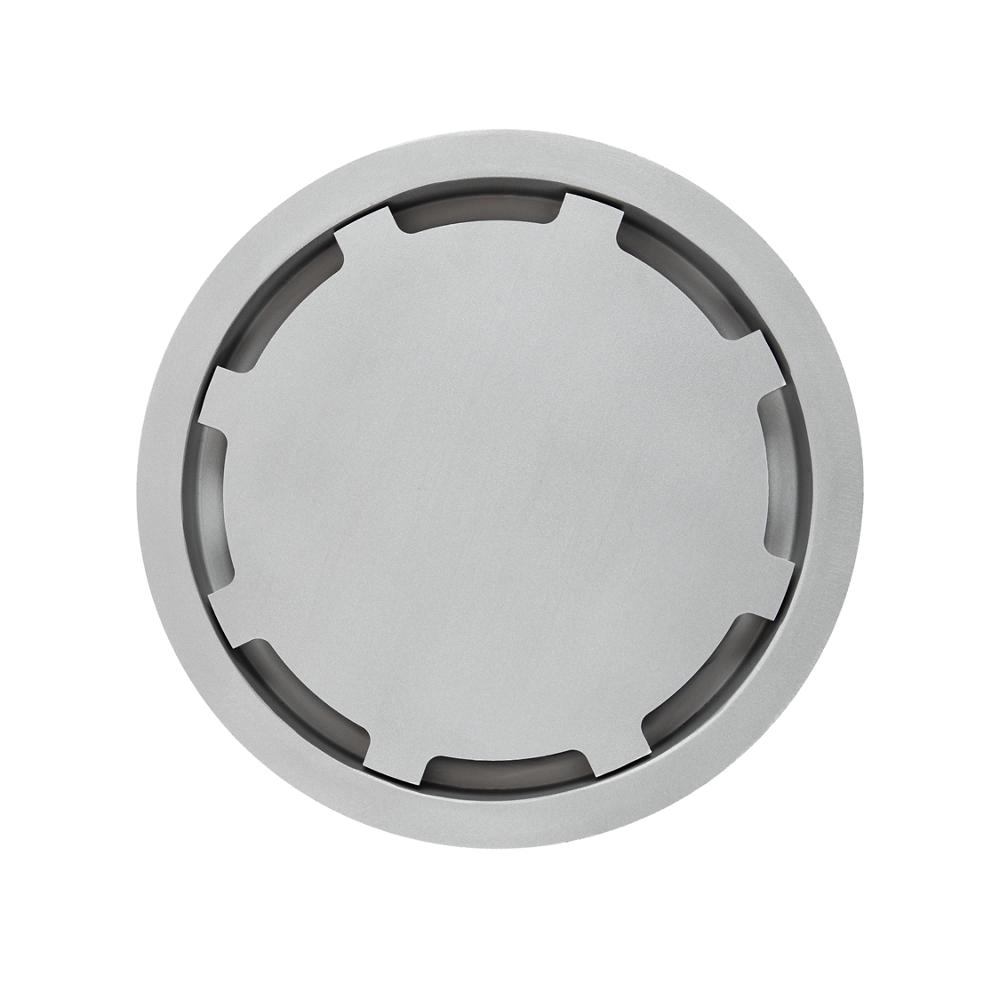

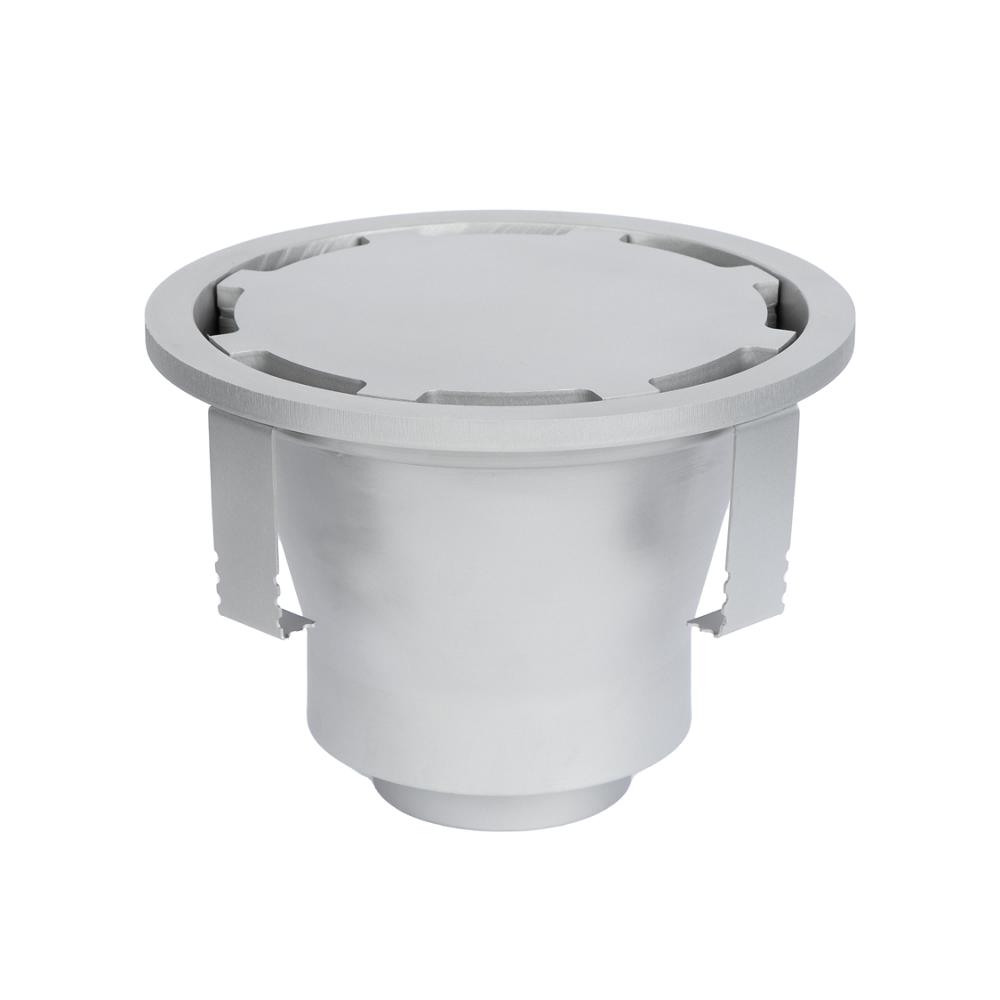

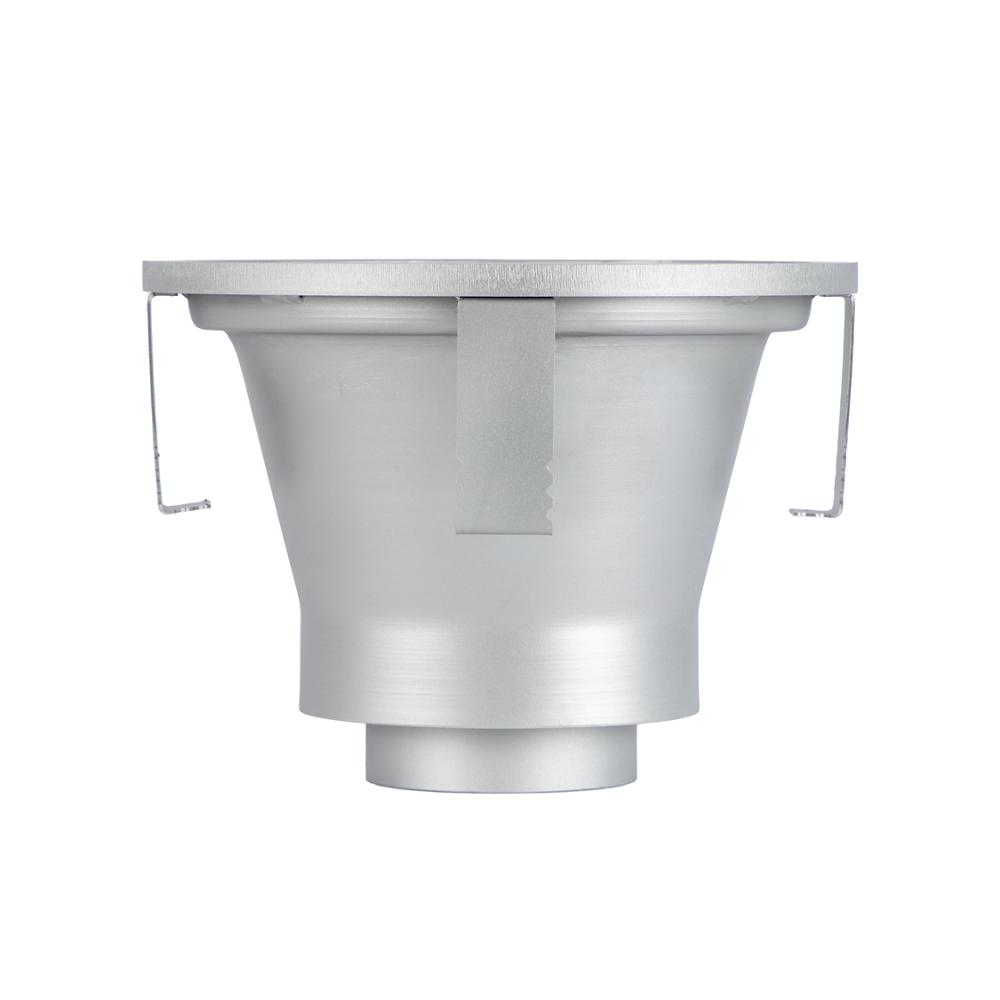

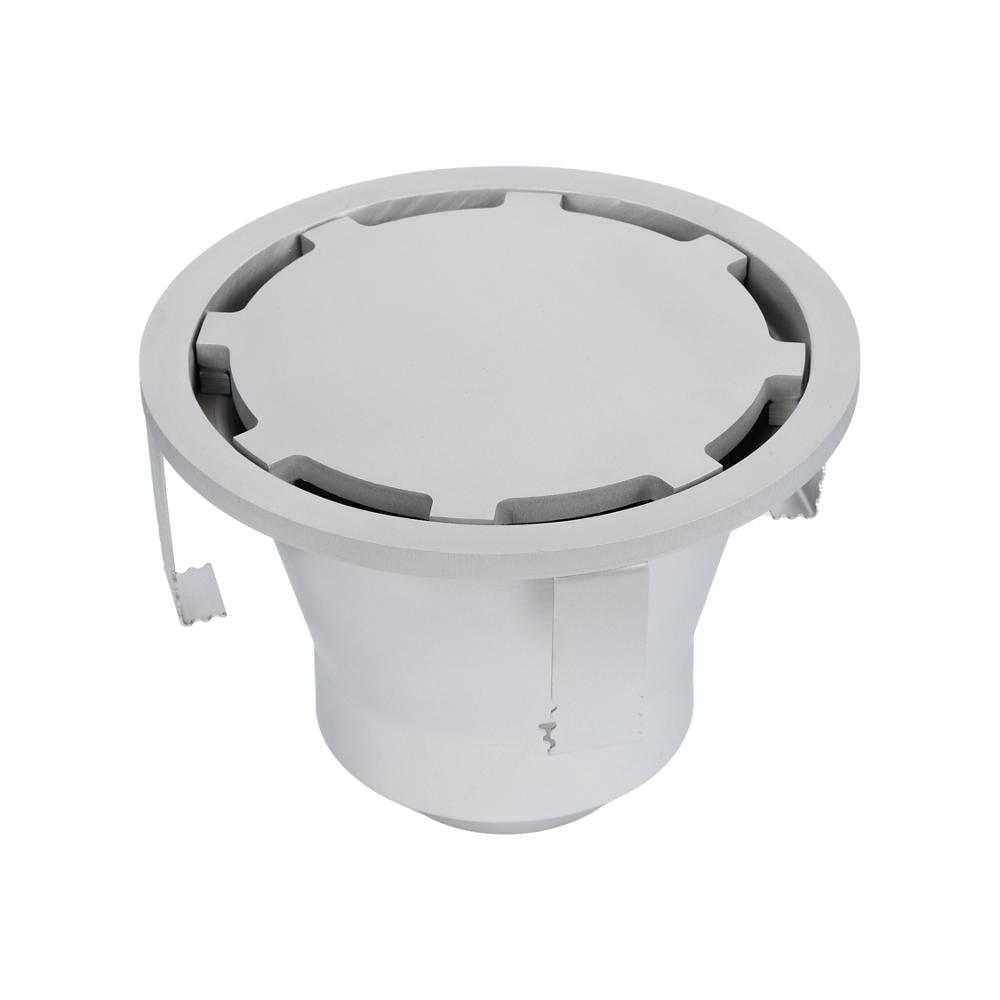

12" diameter round industrial conical double containment drain comes standard with 12 gauge, type 304 stainless steel. The Z1809 round industrial double containment sanitary floor drain features a loose set heavy-duty slotted grate with finger holes. Comes with a removable sediment bucket with lift handle and bead blasted finish

Read More

Where to Buy
  • Prevent condensation build-up when drain is exposed in above-grade applications
  • Conical drain body reduces risk of standing water and provides superior sanitary drainage
  • 12 ga. seamless drain body construction reduces potential bacteria-harboring points
  • Load rated for heavy equipment traffic per ASME A112.6.3 - 7,500 to 10,000 lb.
  • Available in 304 or 316 stainless steel
  • Choose between extra heavy-duty slotted or perimeter gap grate, medium-duty perforated grate, 3/4 or 1/2 grate
  • Available with 2", 3", or 4" No-Hub (Schedule 10) or Butt-Weld (Schedule 40) outlets

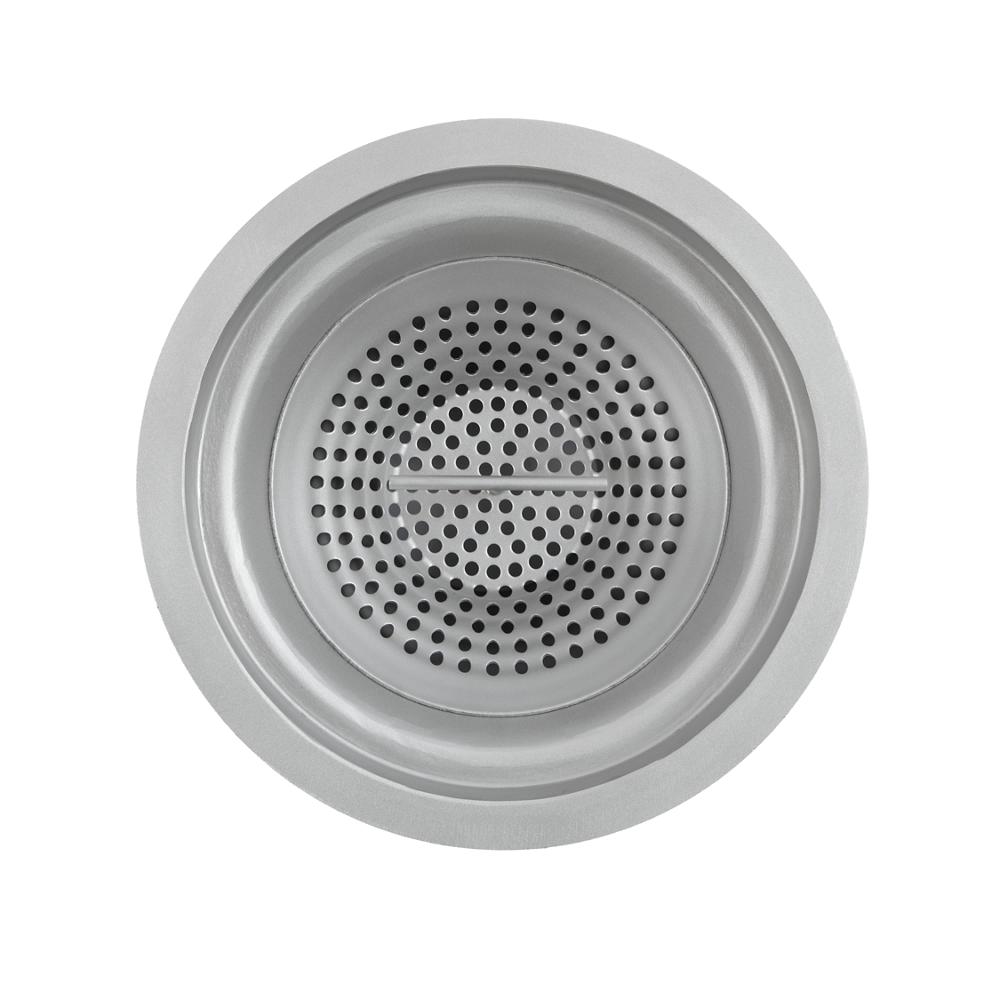

  • Comes standard with perforated removable sediment basket with lift-handle for ease of use
  • Configure with EZ Magnetic Lock Secondary Strainer for added drain line protection
  • Meets USDA guidelines
+ View More Features
