ZS880

Stainless Steel Linear Shower Drain

Find us in MasterSpec®

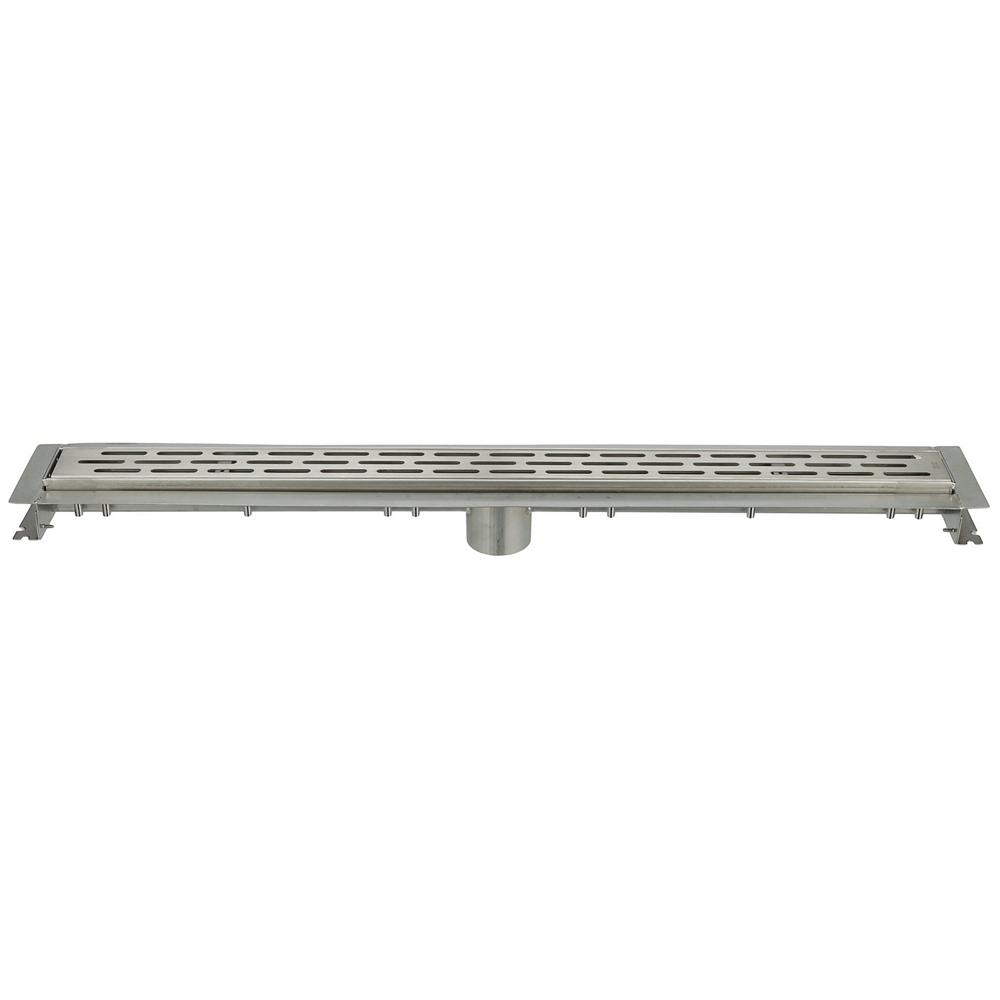

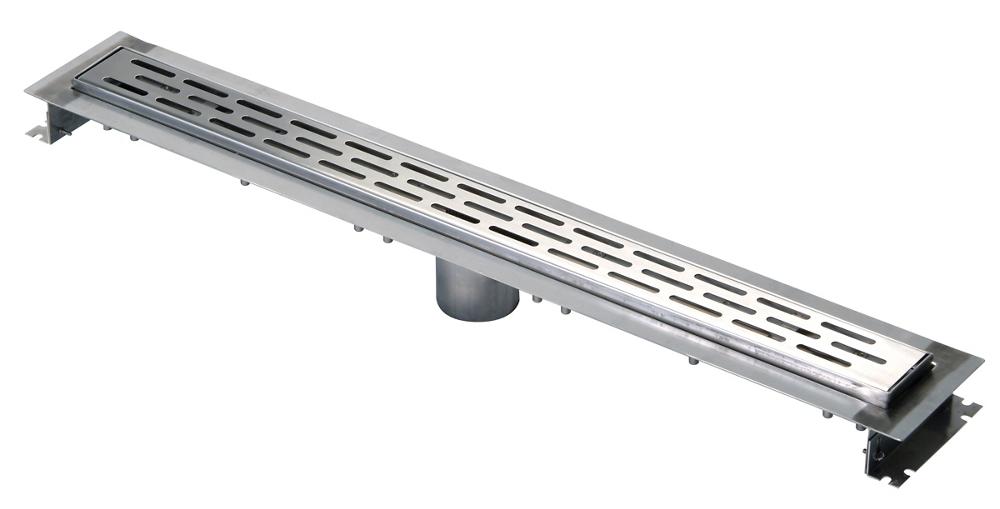

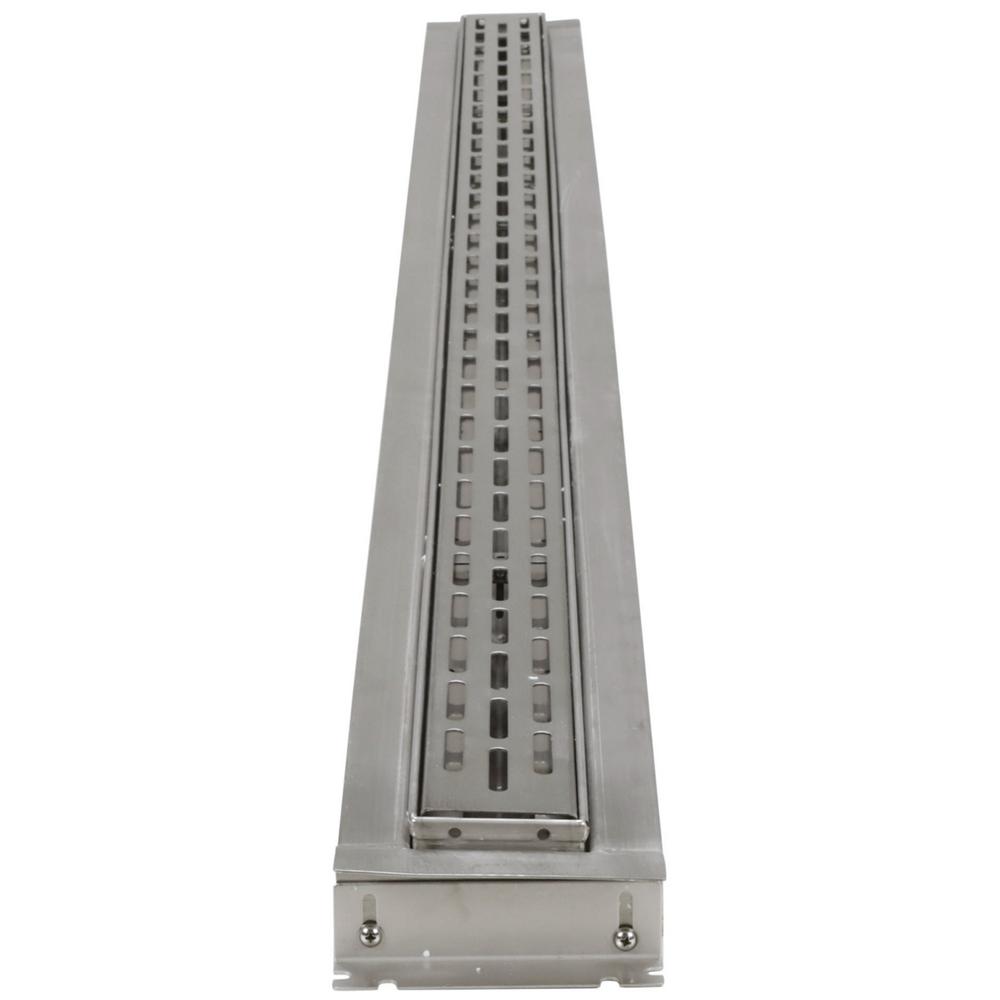

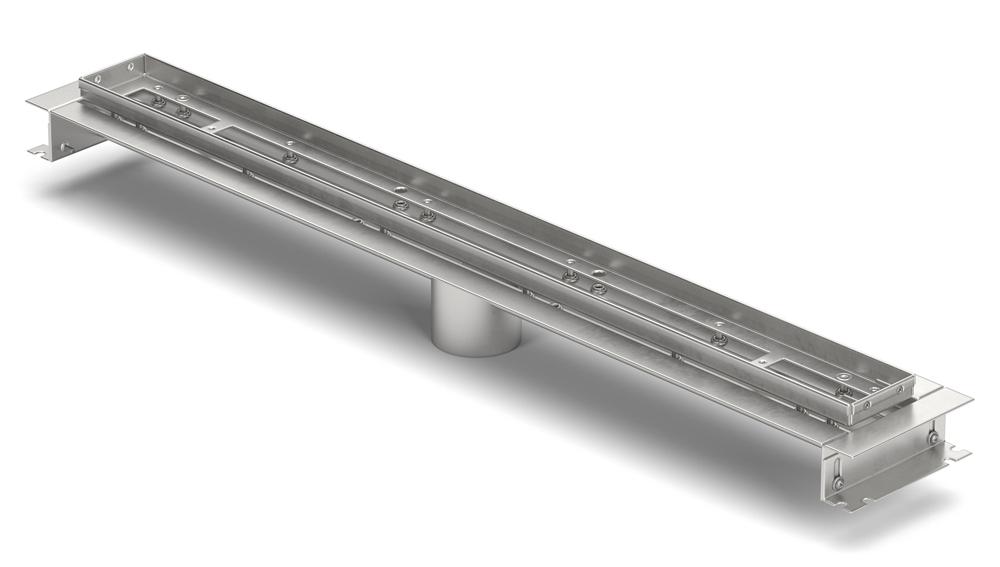

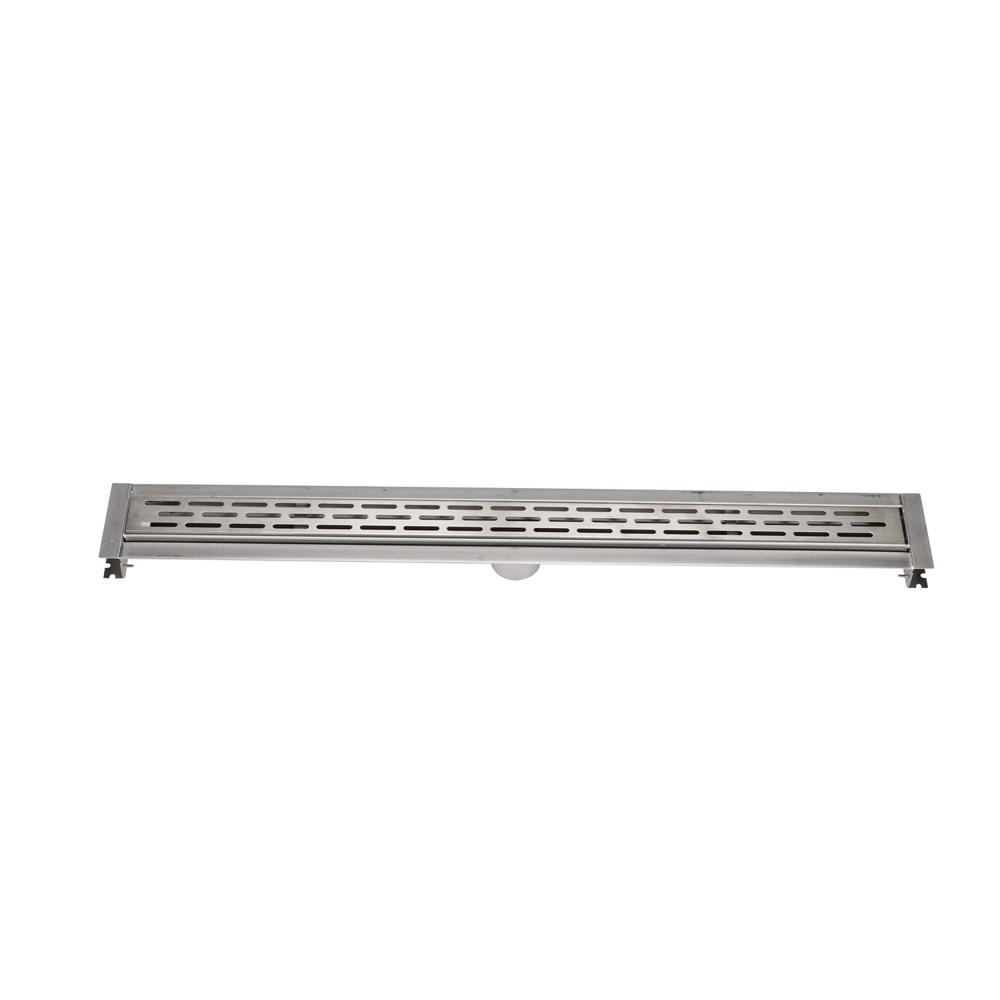

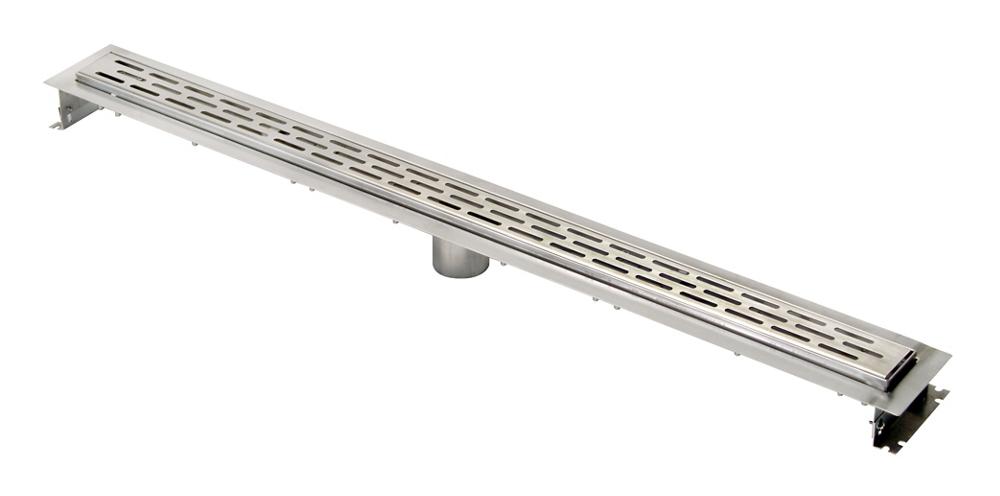

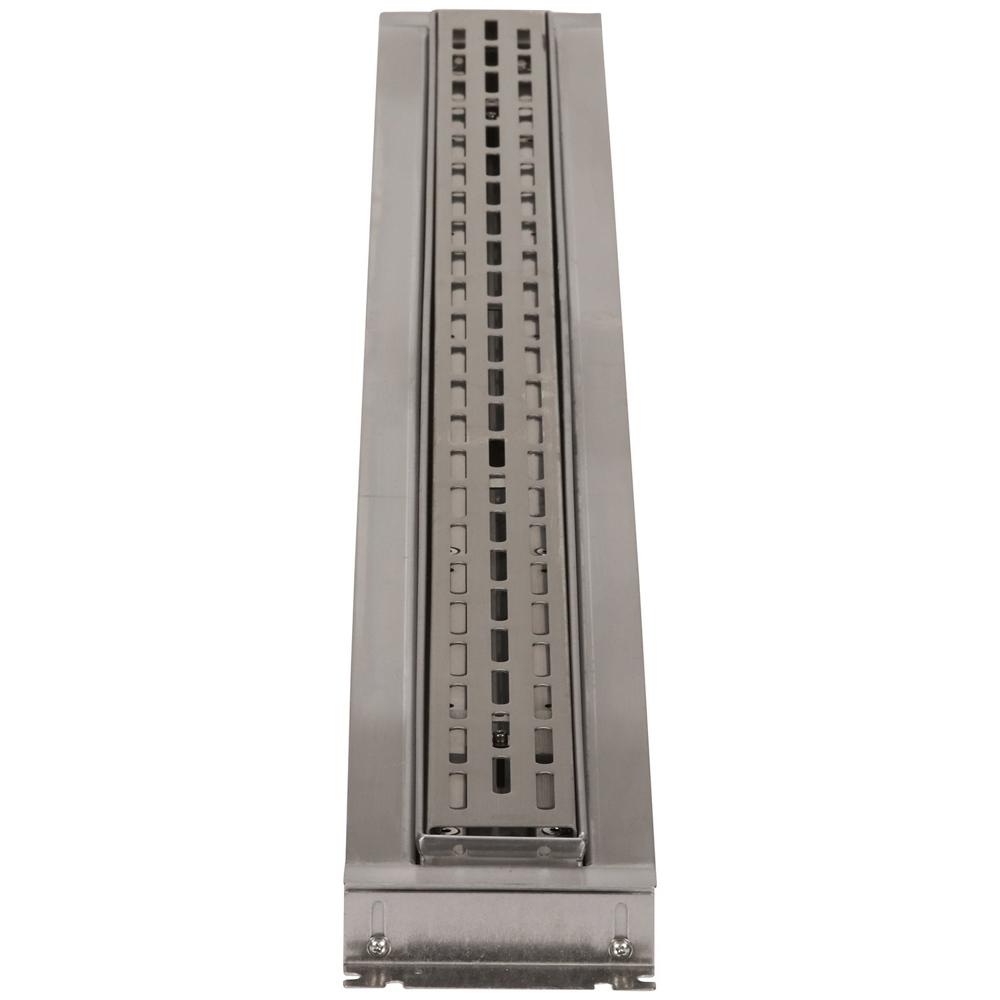

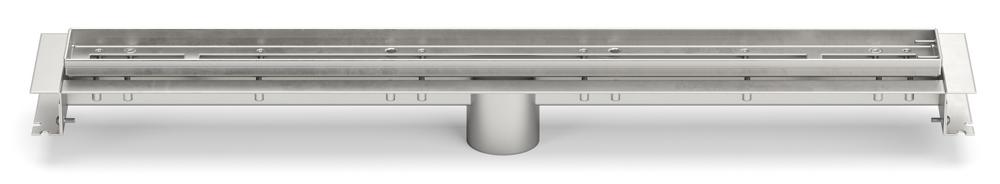

ZS880 type 304 (CF8) Fabricated Stainless Steel Linear Shower Drain. Complete with vertically adjustable anchoring support legs, anti-ponding V-shaped channel with 2" No-Hub outlet, adjustable secured leveling frame with built-in tiling edge, and secured, light-duty, slotted heel-proof grate. Drain is designed for installation in a minimum 2" concrete pour and can be adjusted to accommodate 1/4" and 3/8" finished tile thicknesses.

  • Stainless steel construction holds up to years of use and ensures sanitation
  • Vertical adjustable support legs secure drain in place during installation
  • Adjustable, secured leveling frame with built-in tilt edge

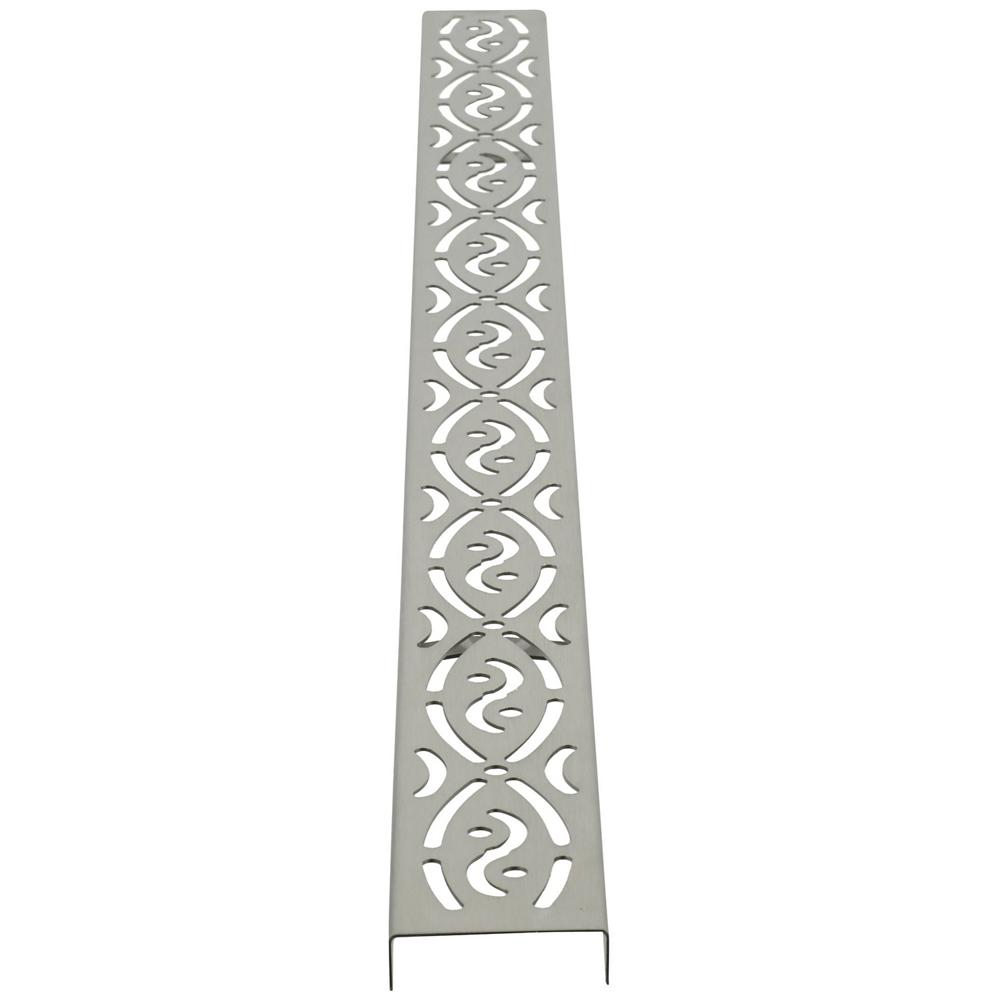

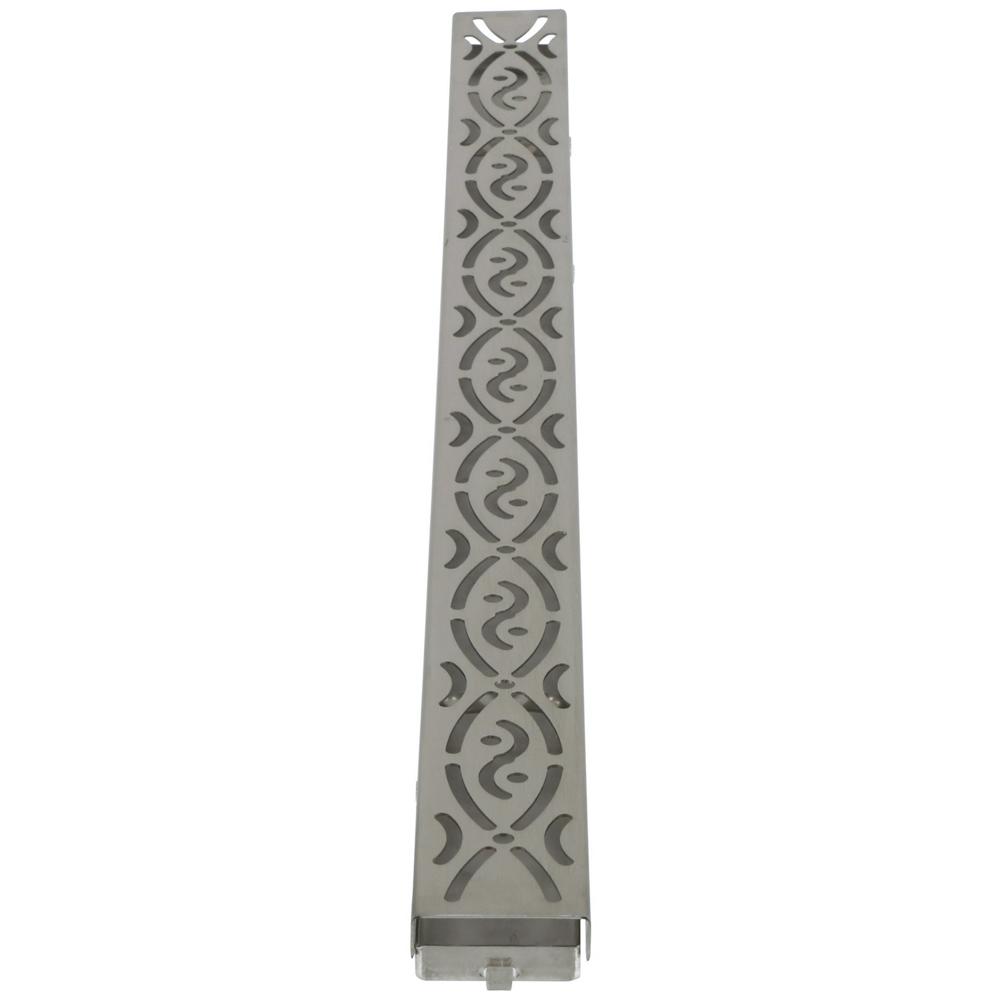

  • Light-duty, slotted heel-proof grate works for a variety of applications
  • Multiple run applications are available
  • No-hub center outlet
  • ADA Compliant
  • 1-year limited warranty
+ View More Features

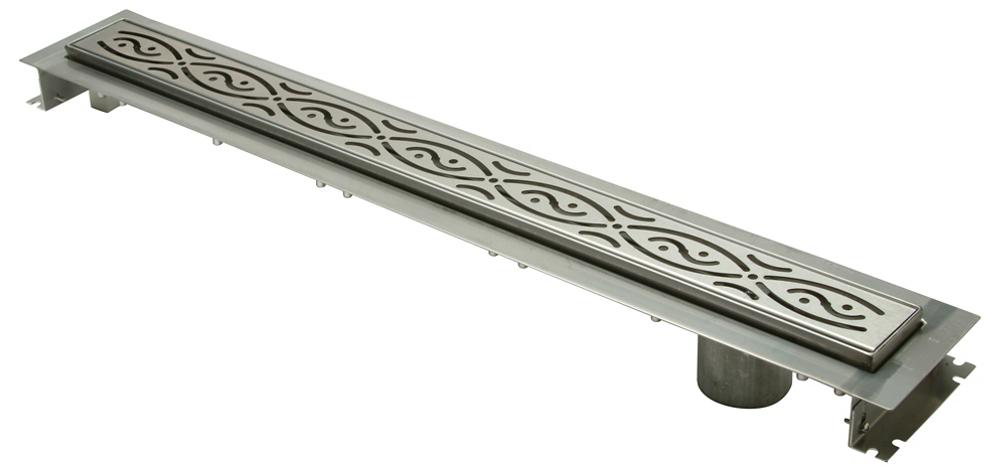

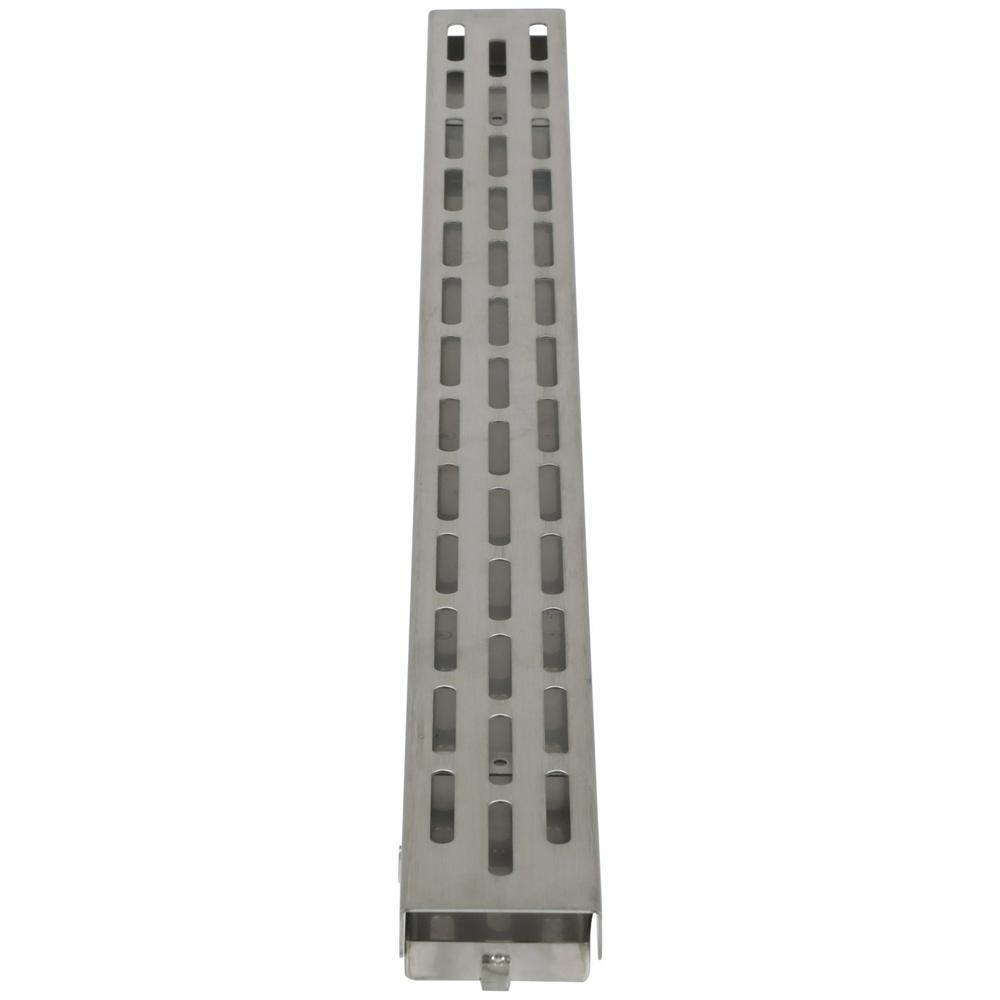

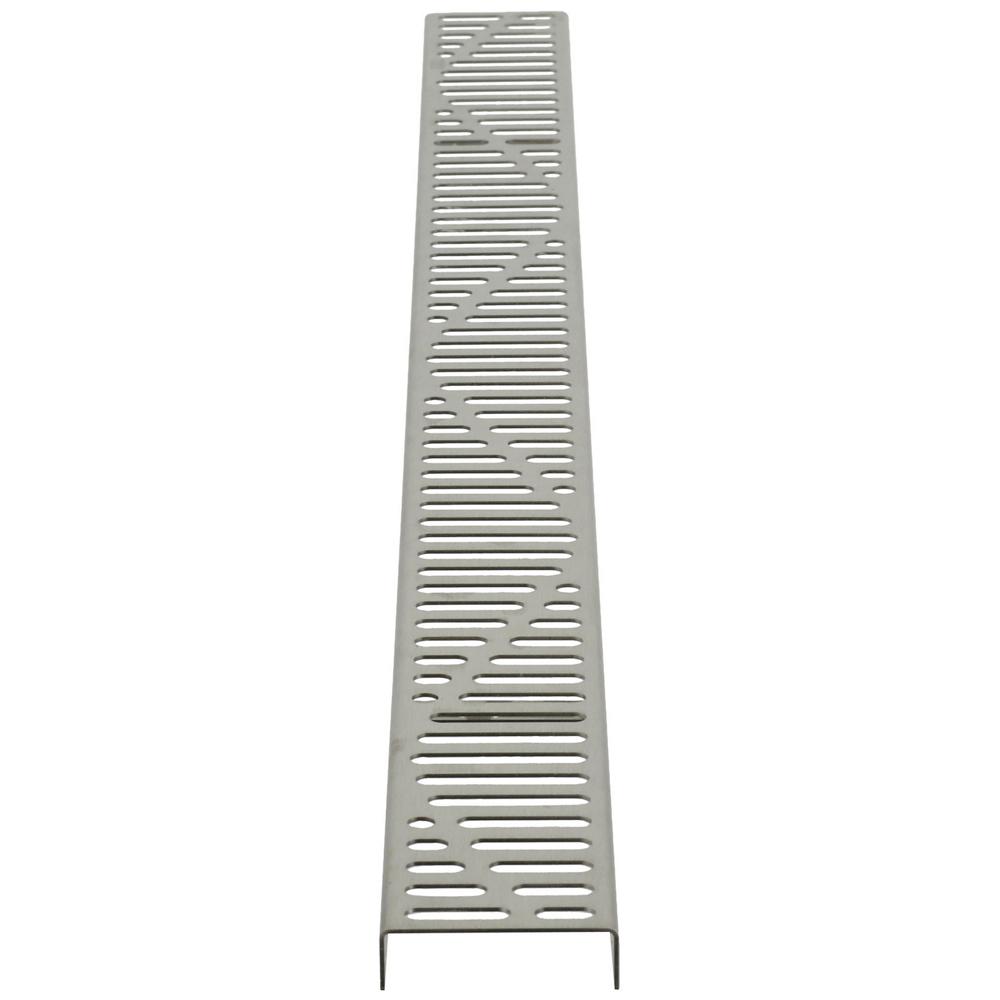

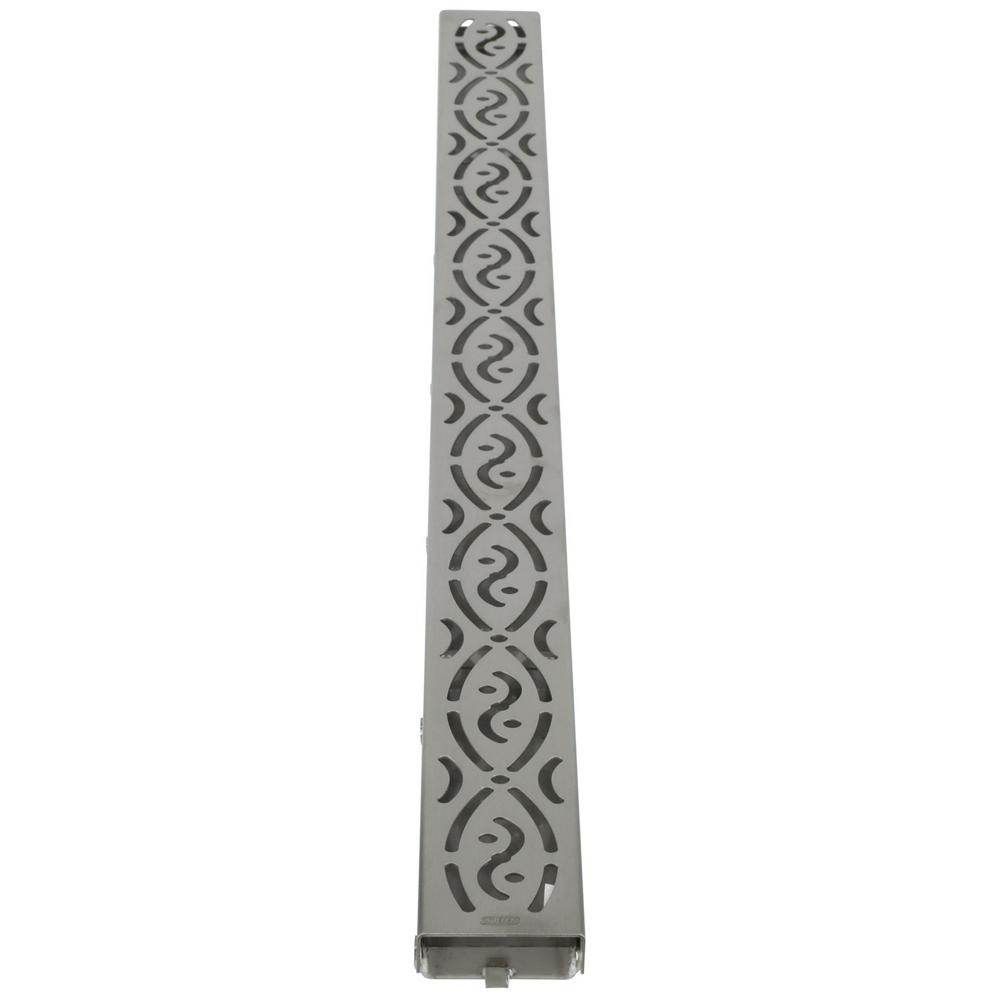

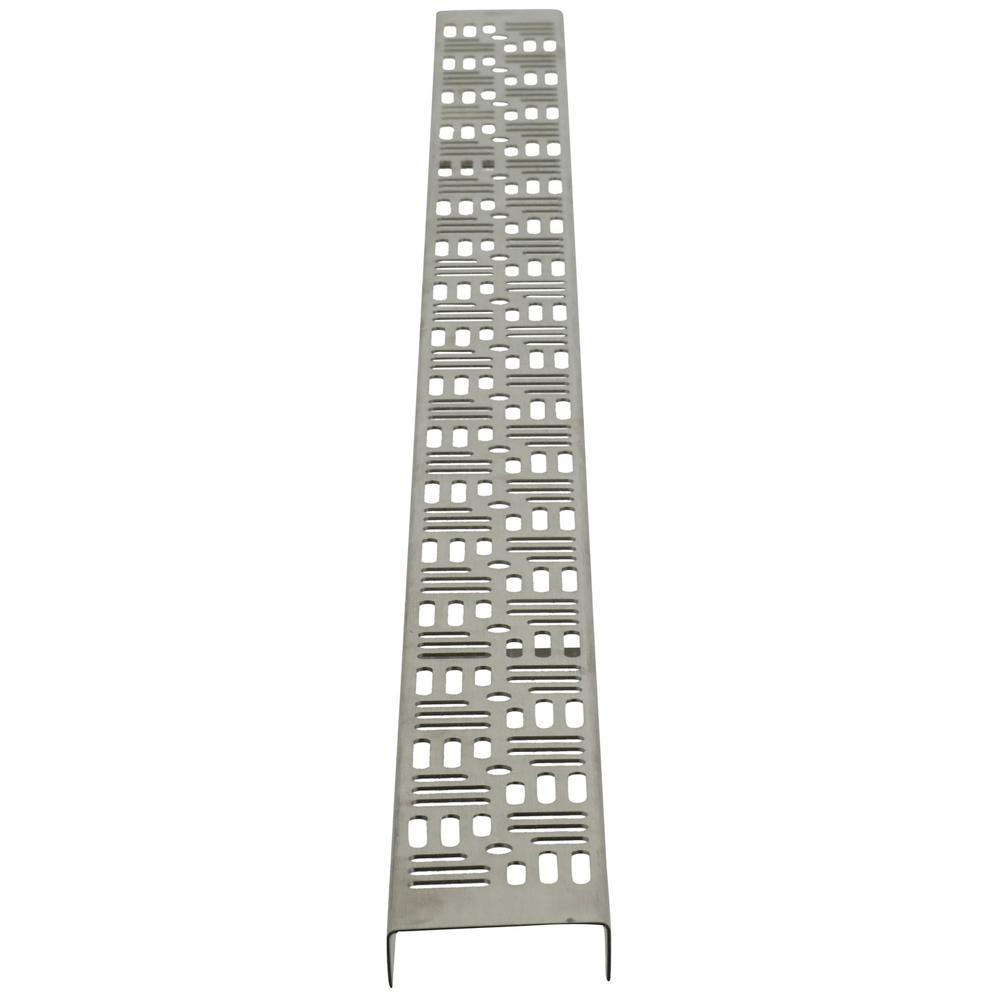

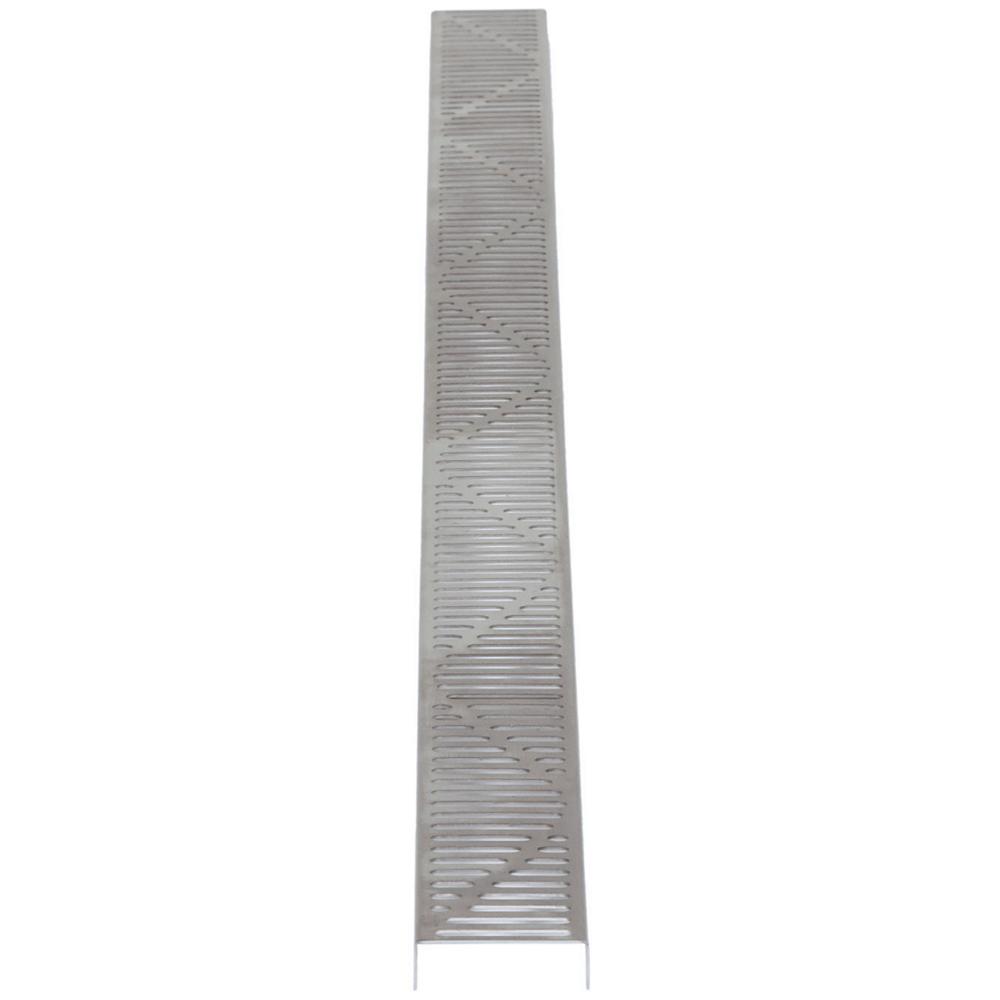

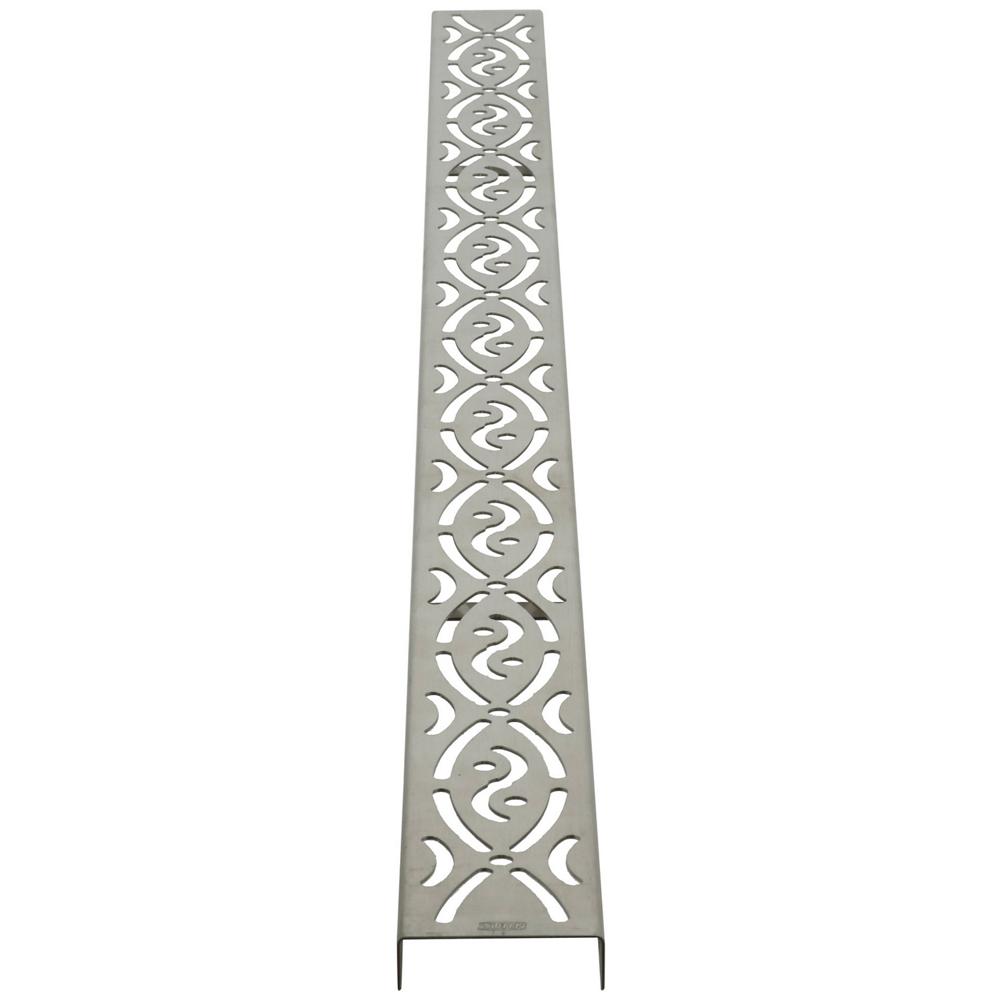

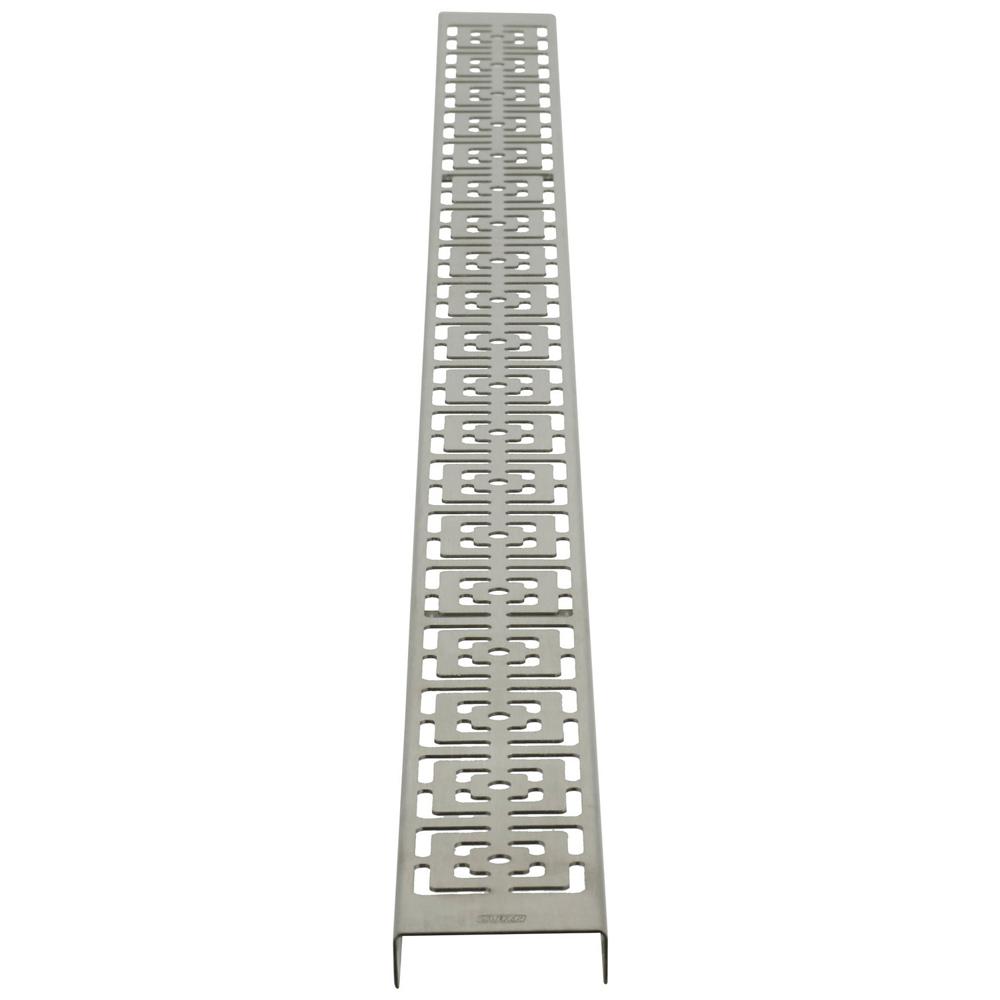

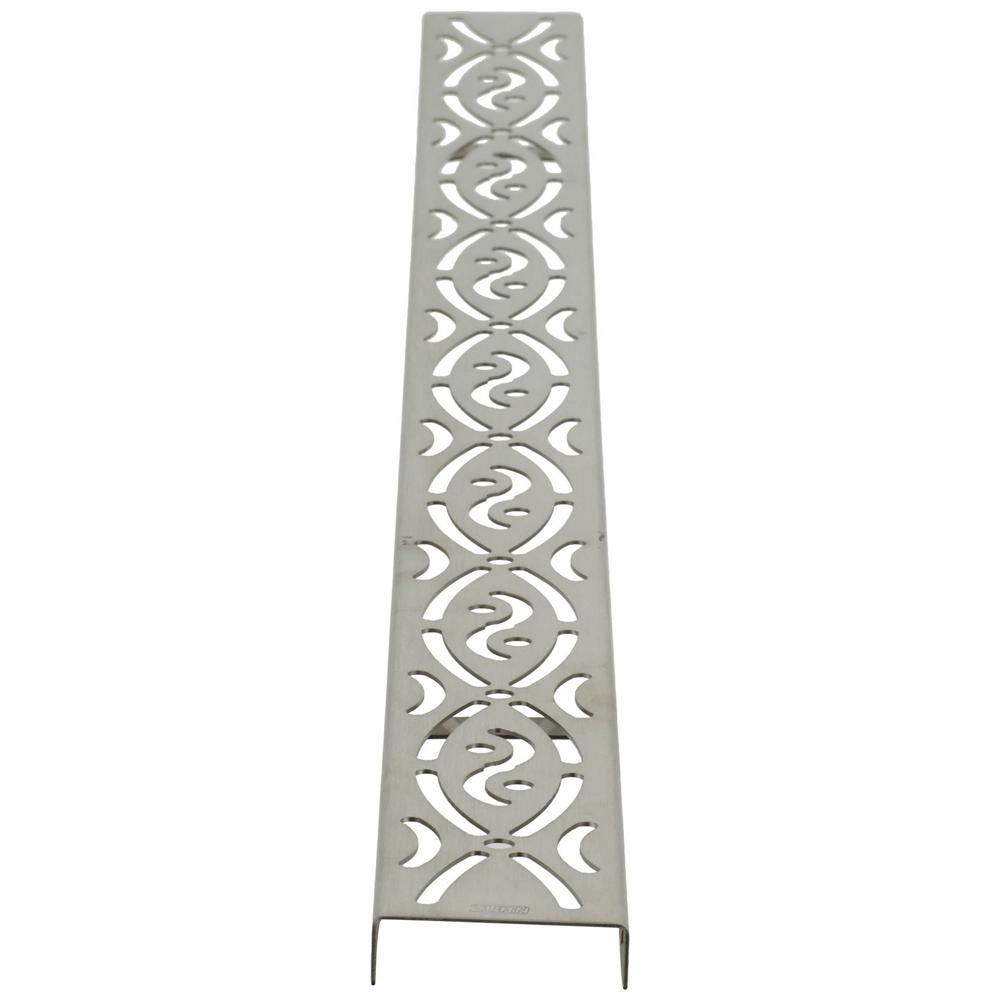

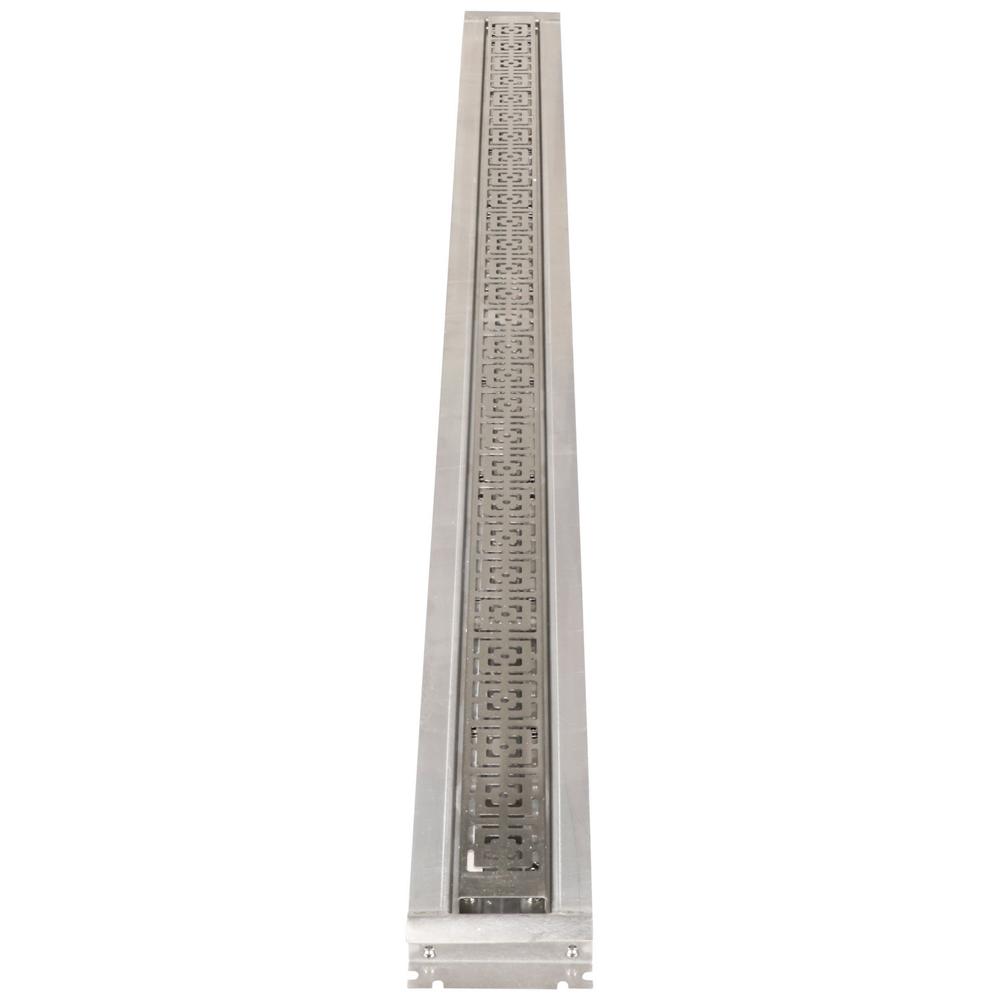

The ZS880 is specifically designed for shower applications and comes available with a variety of decorative grates and finish options.
