Z886-DI

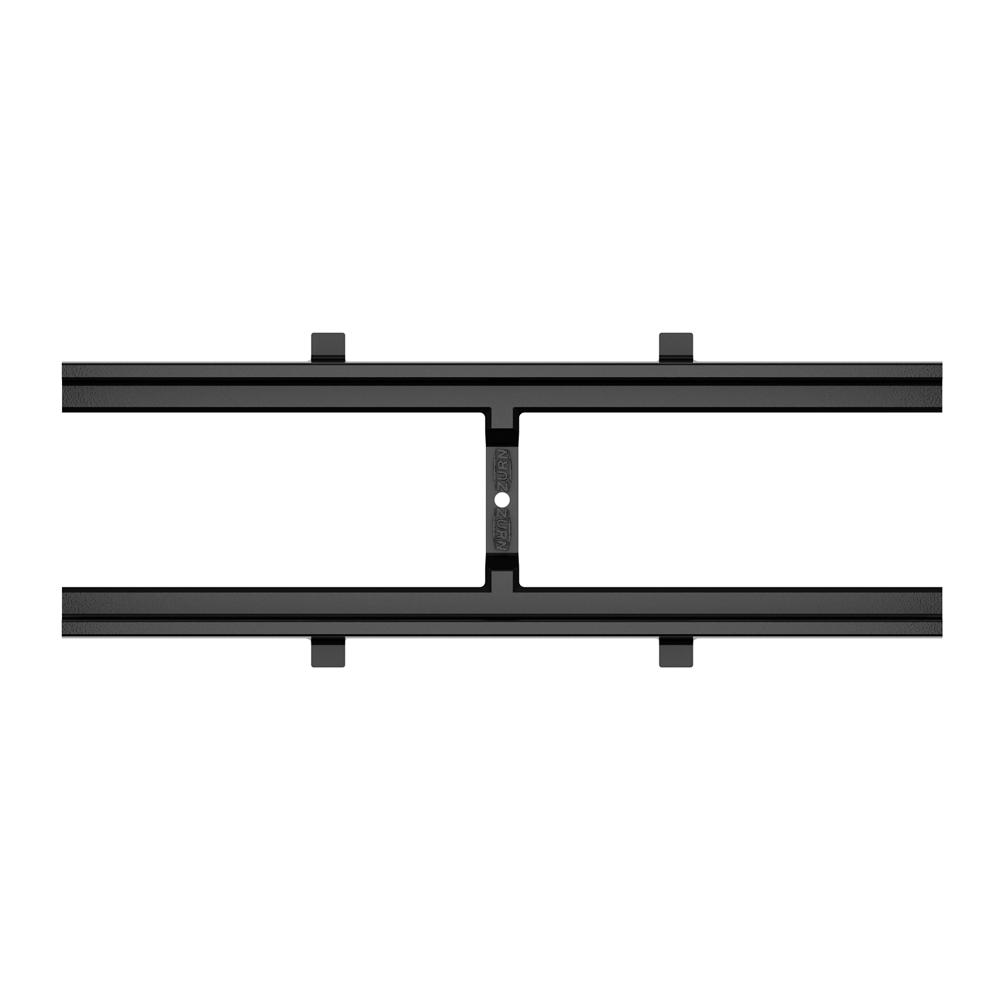

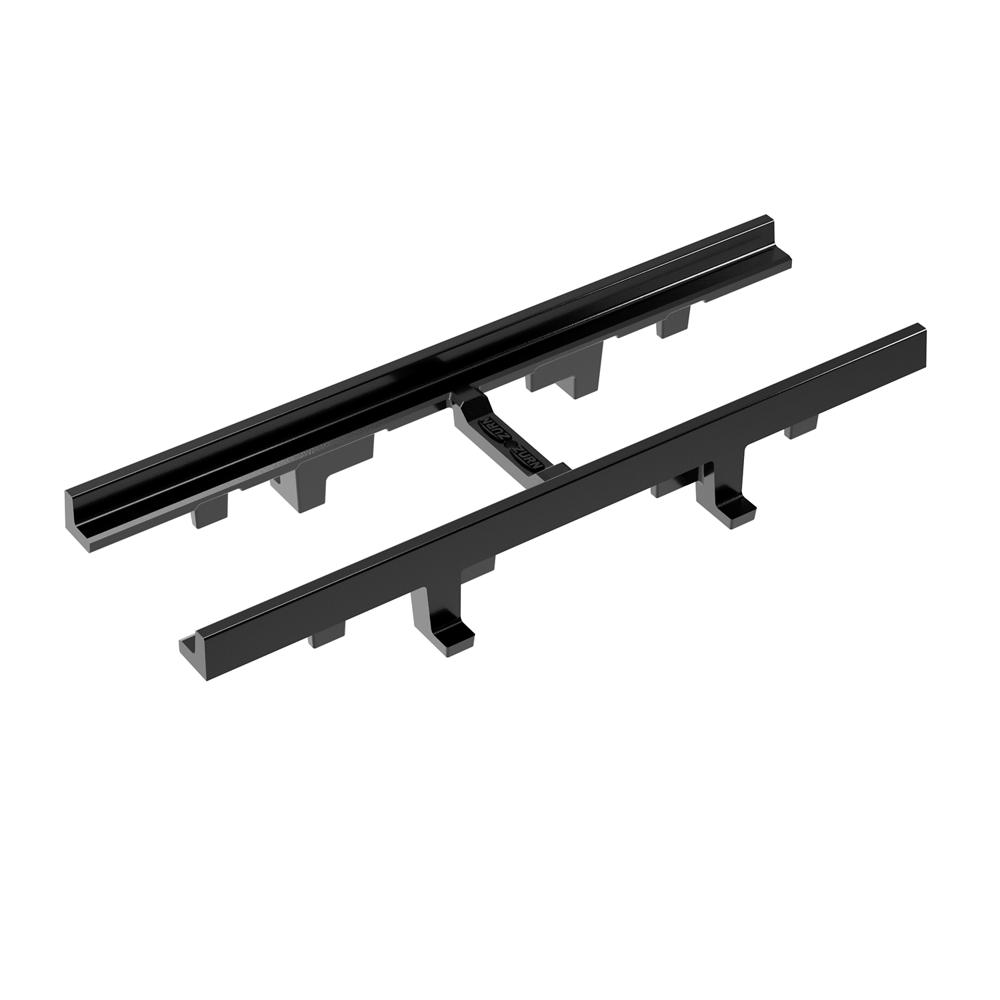

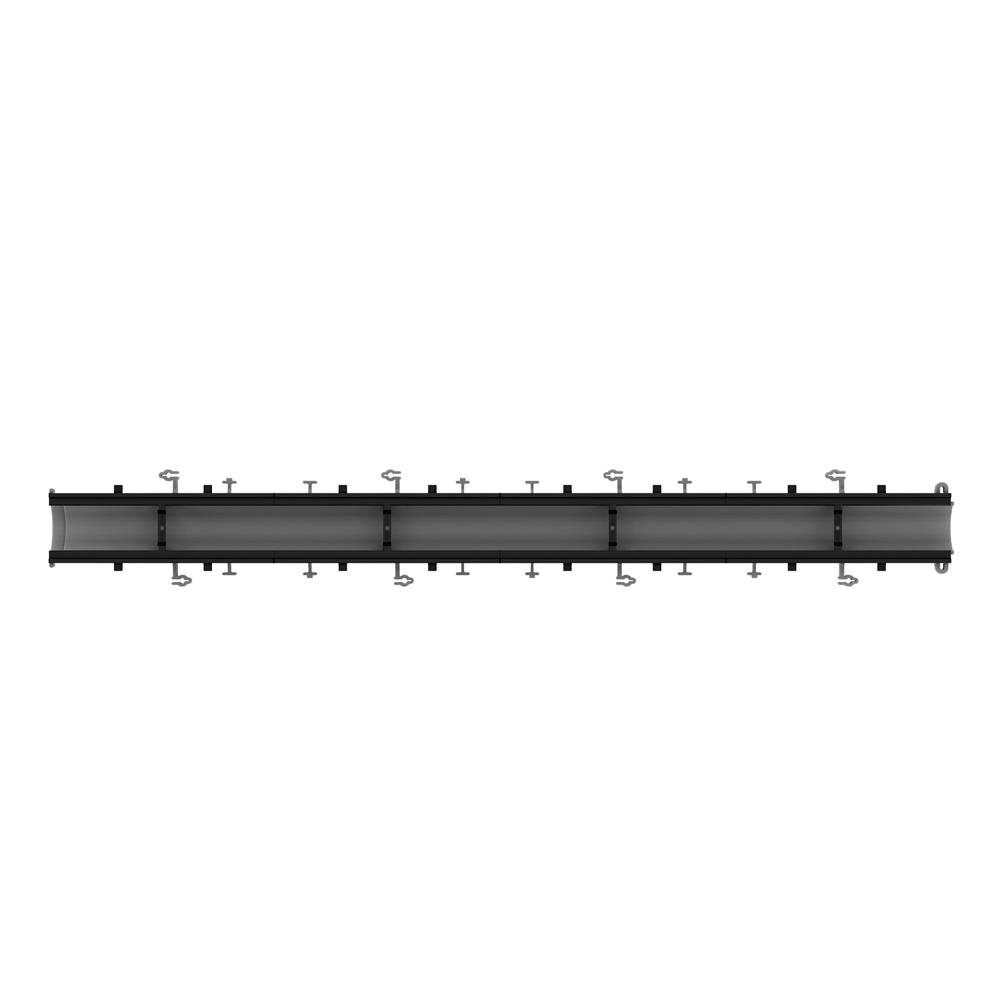

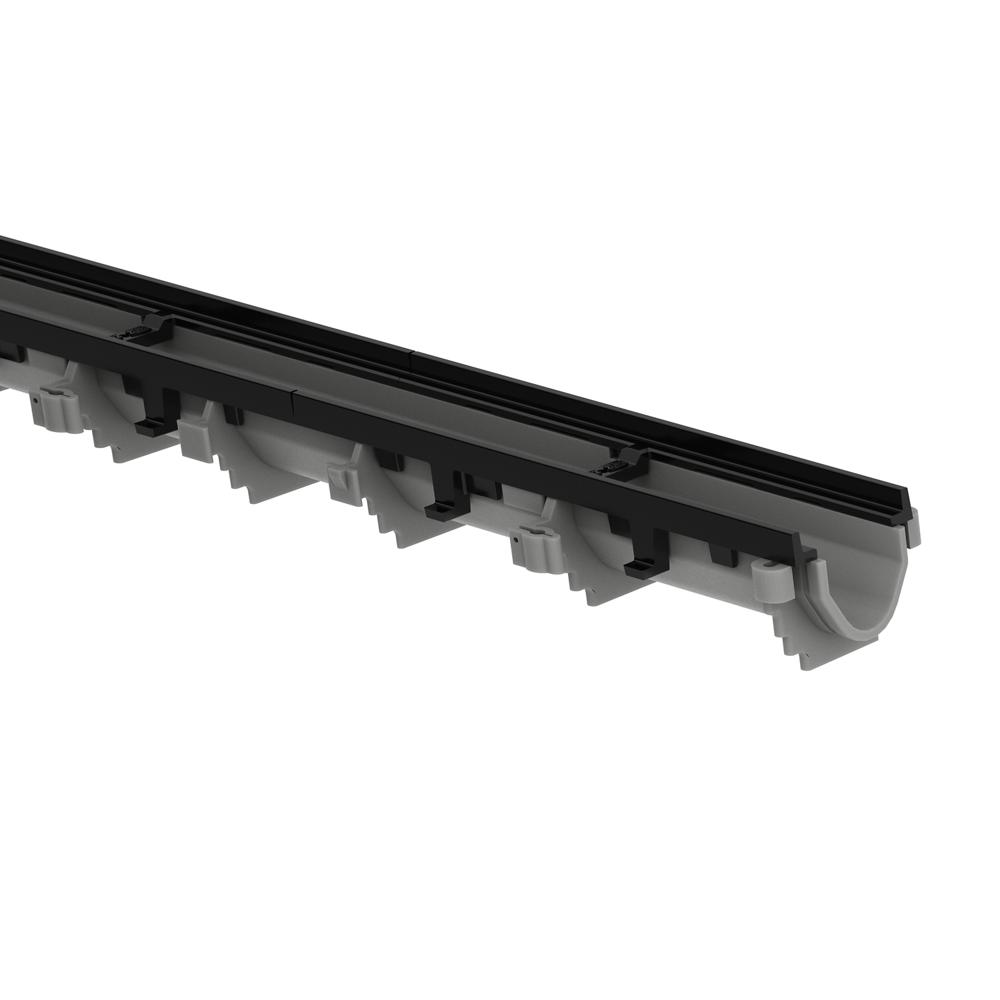

Zurn® 6" Wide Reveal Trench Drain System With Cast Ductile Iron Frame

Heavy-duty ductile iron frame meets heavy loading requirements in many civil settings such as DOT, airport and military applications. Capable of load requirements up to and including DIN-F. Uses our existing 6" Z886 trench channel system and its tried-and-true benefits. Lightweight, easier-to-install construction saves time. Minimizes trench depth while maximizing flow performance. USA configurable.

Read More

Where to Buy
  • New ductile iron grate with center bolt lock down meets DIN F load requirements
  • Heavy-duty solution to meet requirements for civil applications such as DOT, airport and military
  • Tried and true Z886 trench drain channel performance with upgraded frame
  • Carbon black trench drain channel available to meet state DOT requirements
  • Saves labor up to 75% with lightweight, durable polyethylene construction
  • Sections are 80-inch modular lengths
  • Integral rebar clips for elevation set
  • Mechanical, interlocking connections
+ View More Features

Frequently Asked Questions

​Yes, we can create specials with different angles please contact your Zurn customer service representative for more information.​

The Z886 can handle water temperatures up to 140 degrees Fahrenheit.  If higher temperatures will be passing through the trench, the Z806 can handle water temperatures up to 150 degrees Fahrenheit, and the ZV806 can handle water temperatures up to 210 degrees Fahrenheit.​

There are two viable connection methods:1. A bottom outlet can be used on the trench, piping over to the basin with standard pipe fittings.2. We can fabricate a side outlet at the end of the last channel on the trench drain.Please contact Zurn Engineering for more information.​

Yes, the Z886 does have a UV inhibitor built into the plastic.​
