ZER6000AV-SM

ZER-SM Series EZ Flush Sensor Diaphragm Water Closet Flush Valve

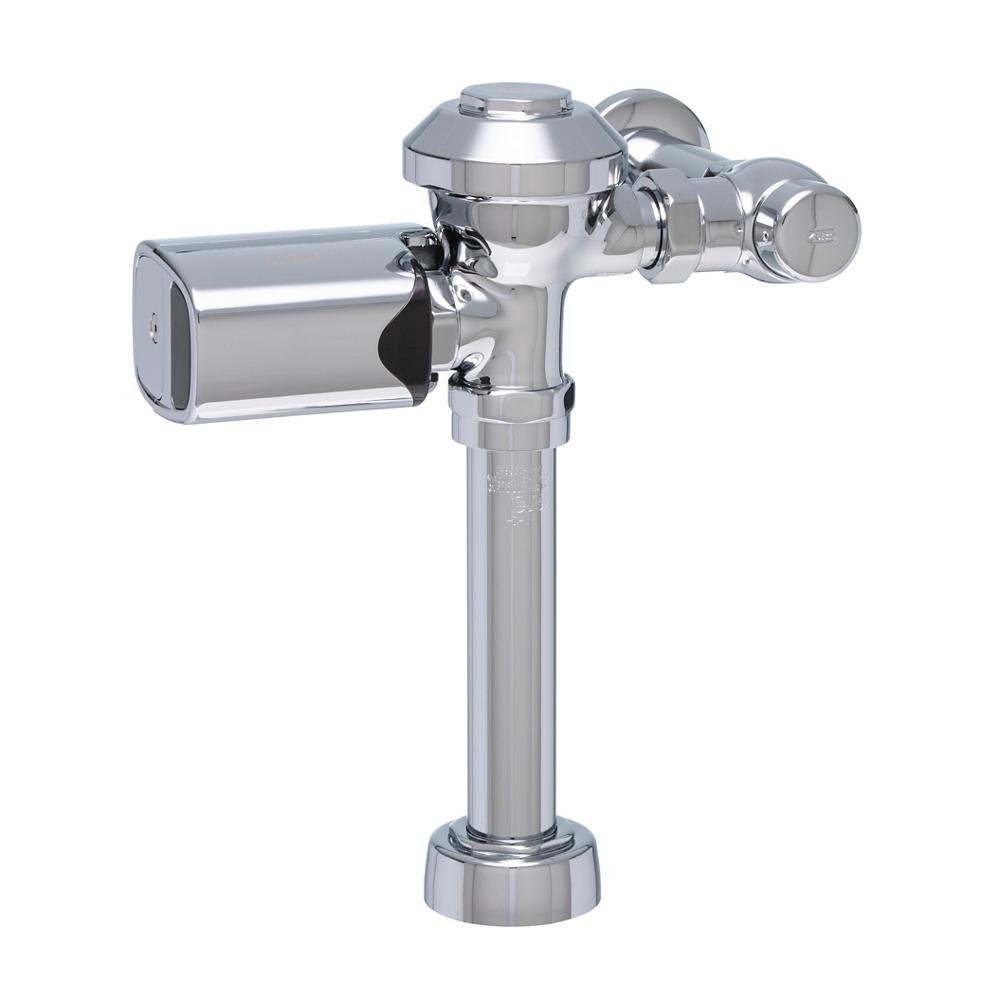

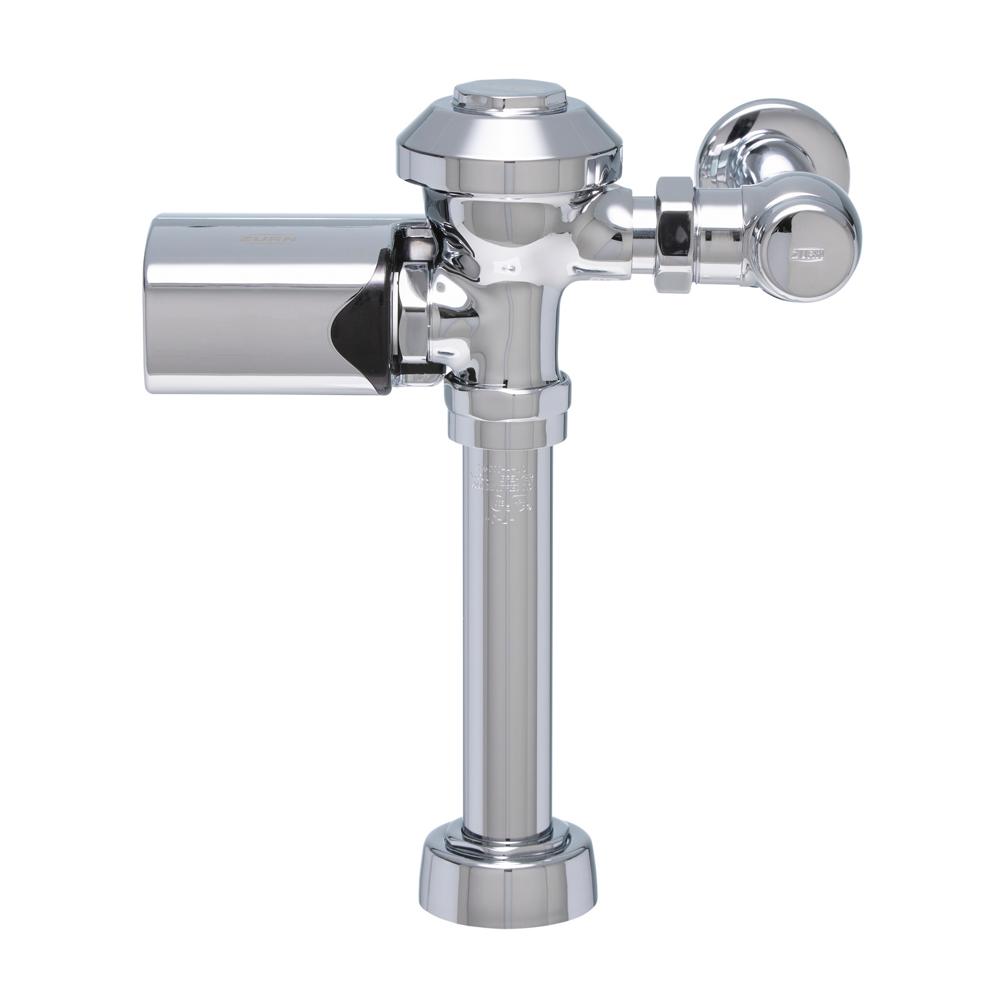

Zurn’s AquaVantage ZER6000AV-SM Exposed Sensor Flush Valves are engineered to perform efficiently and reliably. Its battery-powered sensor accurately detects the user for efficient hands-free water closet operation. Flush volumes range from 3.5 gpf down to 1.1 gpf. Equipped with a durable, chrome-plated plastic cover, this diaphragm-type flush valve features a clog-resistant triple filtered bypass and chloramine-resistant internal seals to minimize maintenance costs and hassle. The ZER6000AV-SM comes with a sweat solder kit and wall flange with set screw for the finishing touch, making it an ideal water-saving solution for any commercial retrofit or new construction project.

Where to Buy

Flush_Valve-Sensor-Zurn-Exposed-Water_Closet-ZER6000AV-SM.rfa

How to Use an RFA Family with a Type Catalog in Revit
Note: When downloading a Revit family, if a .txt file with the same name as the .rfa file is included, this indicates that the family uses a type catalog. In this case, follow the steps below to ensure Revit properly loads the predefined types.

Click here to view more instructions

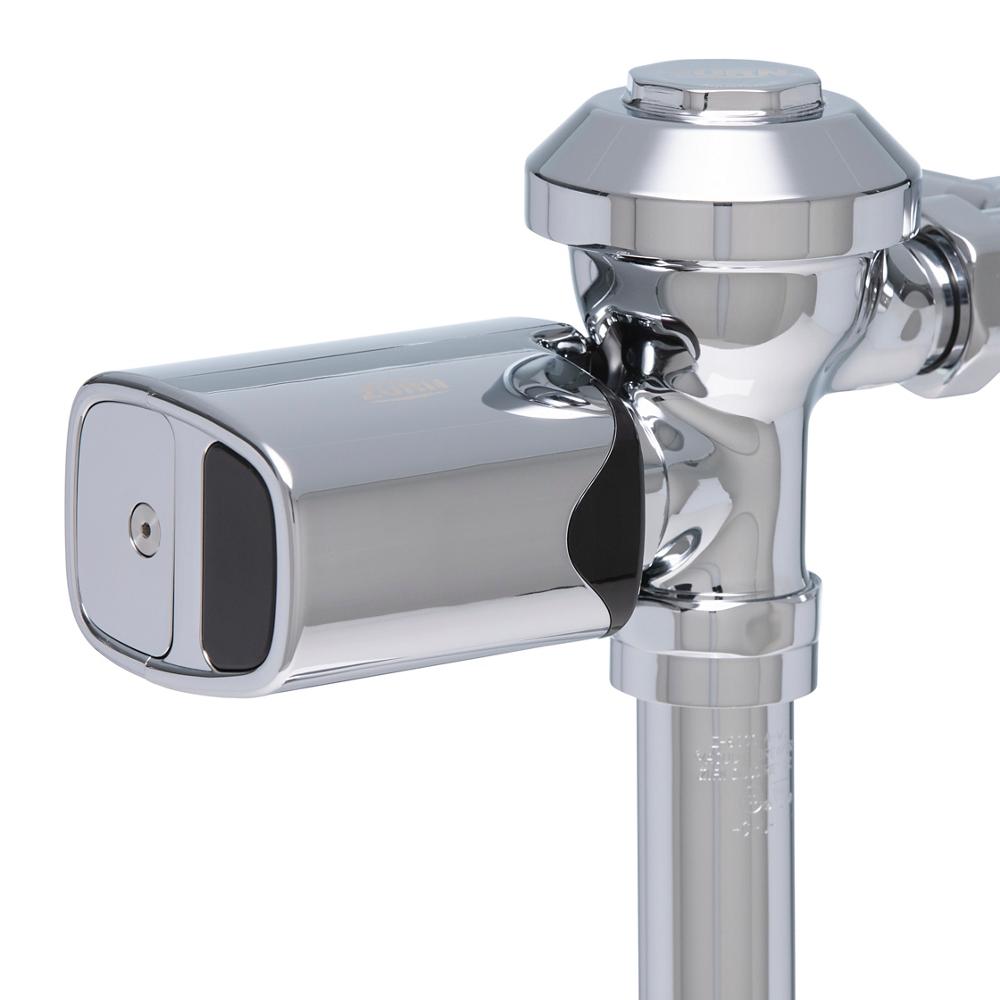

Battery-powered sensor supports a hygienic environment by eliminating touchpoints
Dual seal diaphragm features a clog-resistant, triple filtered by-pass to ensure smooth water flow
True mechanical manual override button delivers on-demand flushing
Control stop has internal siphon-guard protection, sweat solder kit and wall flange with set screw
Durable polycarbonate housing allows for high-impact resistance
Adjustable tailpiece allows for flexibility in installation
ADA compliant
Toggle feature allows for optional 24-hour line flushing to help minimize stagnation and maintain fixture trap seals to protect against sewer gases during periods of inactivity

+ View More Features

Popular Models

ZER6000AV-HET-SM

AquaSense® ZER6000AV-SM Exposed Sensor Diaphragm Water Closet Flush Valve with 1.28 gpf and Chrome Plated Metal Cover

Where to Buy

ZER6000AV-ONE-SM

ZER6000AV-SM Exposed Sensor Diaphragm Water Closet Flush Valve with 1.1 gpf and Chrome Plated Metal Cover

Product Specs

Where to Buy

ZER6000AV-WS1-SM

AquaSense® ZER6000AV-SM Exposed Sensor Diaphragm Water Closet Flush Valve with 1.6 gpf and Chrome Plated Metal Cover

Where to Buy

Configure My Specs

Configure your product to generate spec sheets, BIM files, EPDs, HPDs, and installation instructions - all in a single download. This experience uses local browser storage to save your projects. To avoid losing saved work, do not clear your browser's local storage or cookies. To learn more about Configure My Spec, explore this page.

Resources

Compliance & Certifications

Although products with certain combinations of options and features will meet or comply with these standards and/or certifications, not every combination of options and features will result in such compliance. If you have any questions about your particular product, please contact our Customer Care Dept. at 1-855-ONE-ZURN (United States) or 1-877-892-5216 (Canada) for confirmation.

ADA Compliant Options Available	Yes
Product Certification Options Available	cUPC, ASSE 1037/ASME A112.1037/CSA B125.37
WaterSense Compliant Options Available	Yes
