ZER6000AV-HYD

Top Mount Exposed Sensor Flush Valve for Water Closet With Gear-driven Ceramic Cartridge, Hydropower, AquaVantage® Diaphragms

ADA Compliant

Experience reliable, hands-free operation designed to last the life expectancy of a commercial restroom. This sensor flush valve for water closets requires no hard wiring or battery replacement, which means lower installation and maintenance costs. The gear-operated flush valve features a clog-resistant filtered diaphragm. It is sensor activated to support a more hygienic environment by eliminating touch points. Pair with Hydro•X Power® faucets to maximize sustainable restroom goals. Customize usage settings using Zurn Elkay's Bluetooth app or upgrade to the smart connected option for fleet management, including real-time data.

Read More

Finishes

Where to Buy

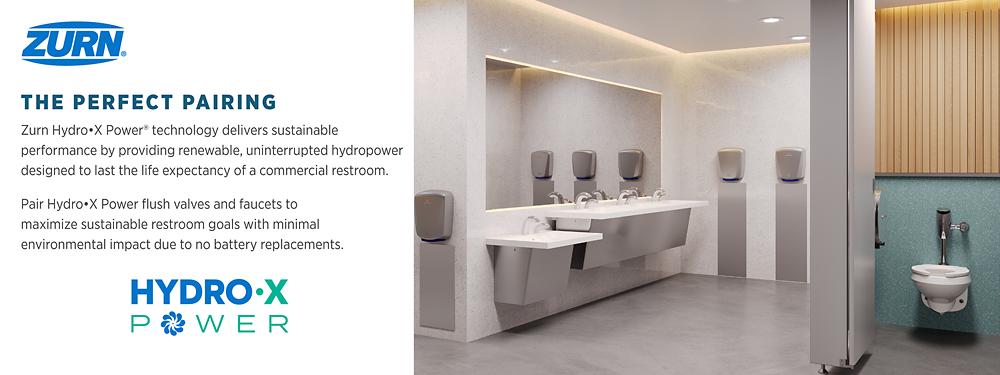

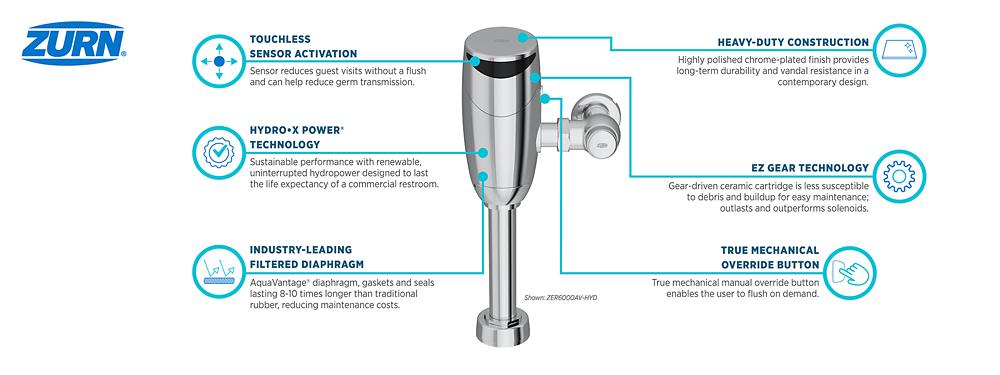

  • Hydro•X Power® technology delivers sustainable performance by providing renewable, uninterrupted hydropower designed to last the life expectancy of a commercial restroom

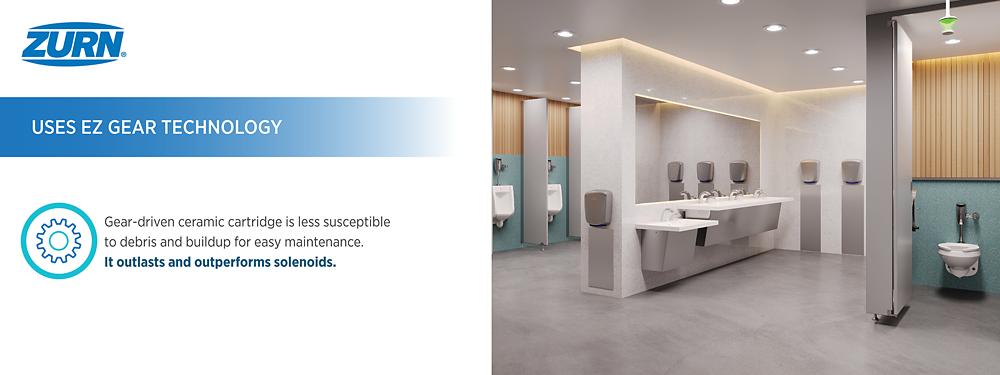

  • Uses EZ Gear technology, a gear-driven ceramic cartridge that is less susceptible to debris and buildup for easy maintenance; outlasts and outperforms solenoids

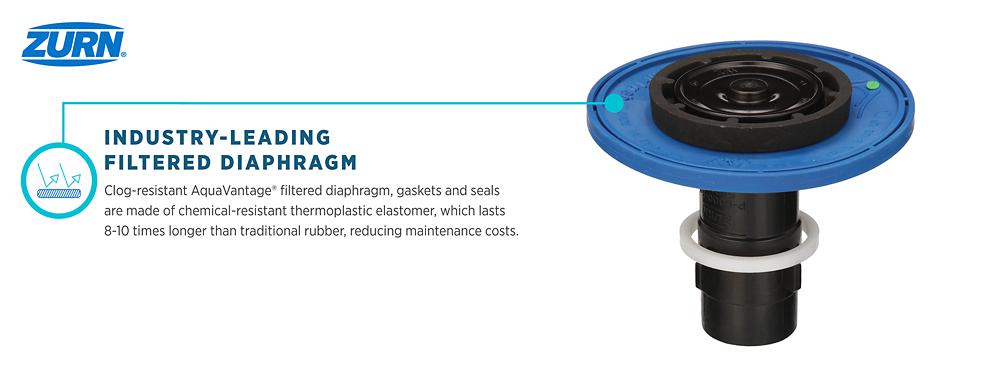

  • Industry-leading, filtered AquaVantage® diaphragm, gaskets and seals are made of chemical-resistant thermoplastic elastomer, which lasts 8-10 times longer than traditional rubber, reducing maintenance costs
  • Automatic touchless sensor activation reduces guest visits without a flush and can help reduce germ transmission
  • True mechanical override button delivers on-demand manual flushing

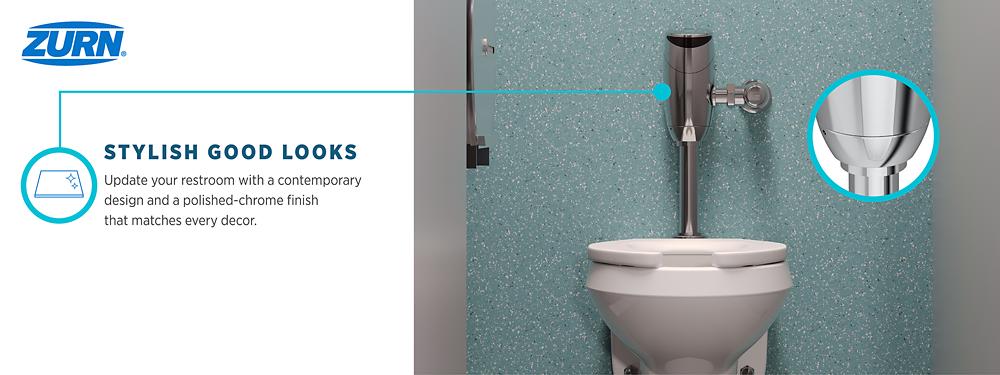

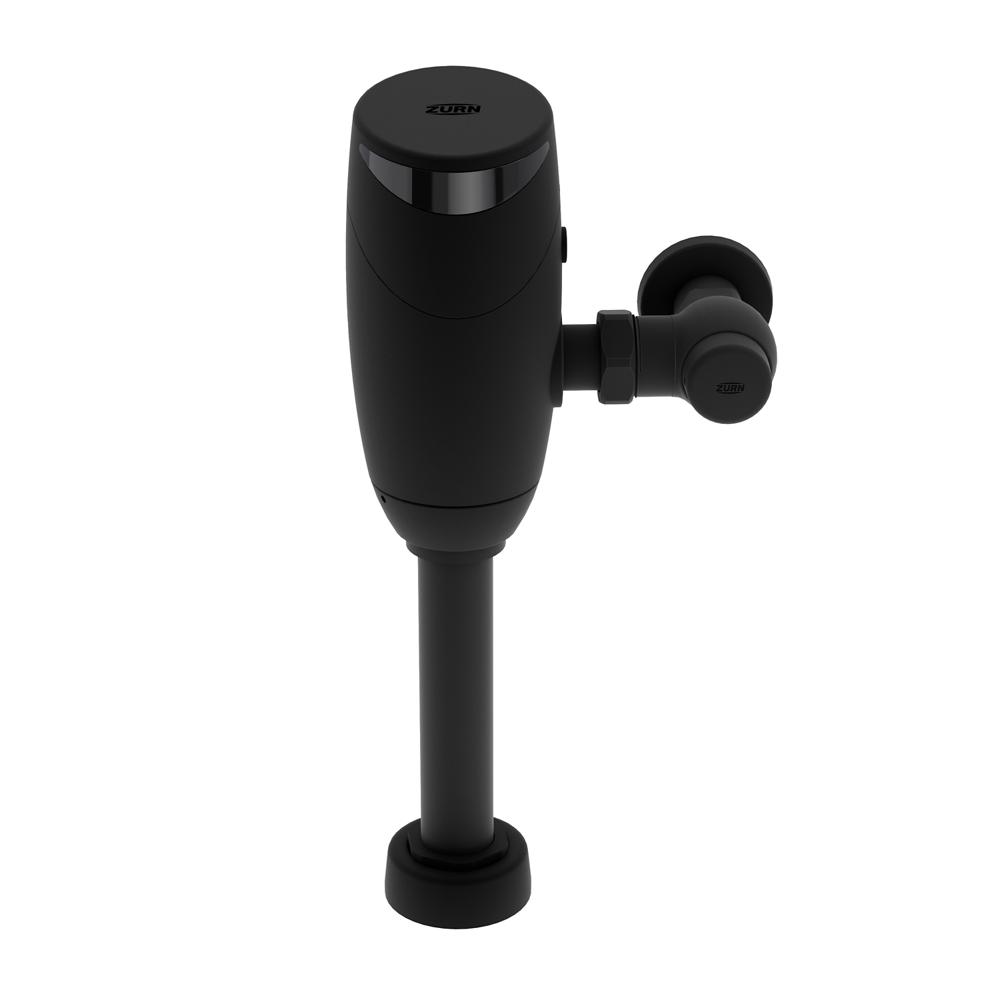

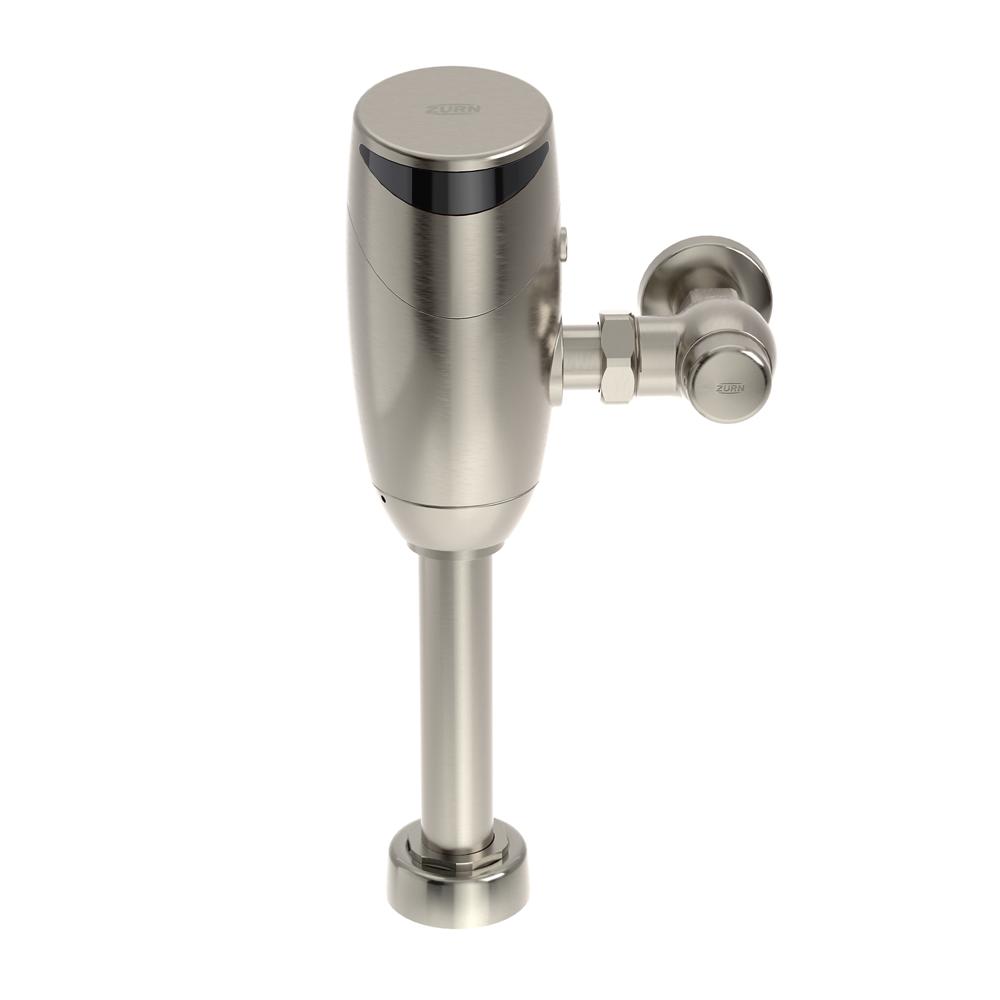

  • Heavy-duty construction with a standard highly polished chrome-plated finish – or optional PVD Brushed Nickle, Matte Black finishes – provides long-term durability and vandal resistance in a contemporary design
  • Standard 24-hour line flushing to help minimize stagnation and maintain fixture trap seals to protect against sewer gases during periods of inactivity

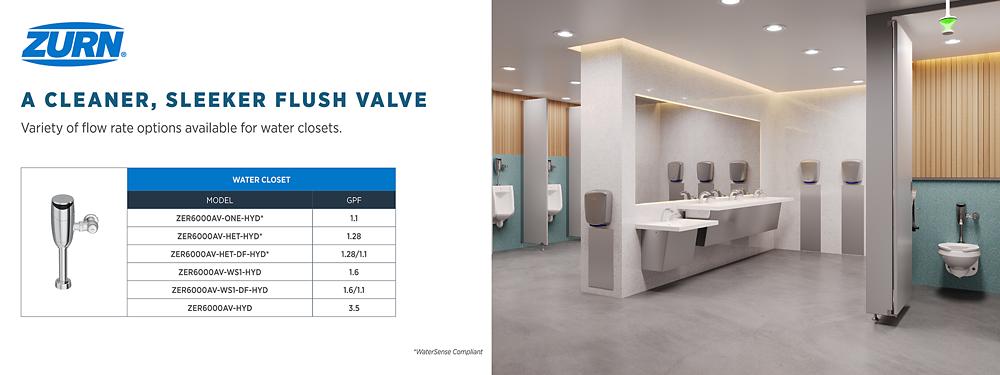

  • Available in water closet flush volumes 1.1 gpf, 1.28 gpf 1.6 gpf, dual flush 1.6/1.1 gpf, dual flush 1.28 / 1.1
  • Bluetooth app standard for point-of-use wireless power source stratus, on-demand or automatic line flushing, timeout and sensor sensitivity settings
  • User-in-view LED indicator light
+ View More Features

Configure My Specs

Configure your product to generate spec sheets, BIM files, EPDs, HPDs, and installation instructions - all in a single download. This experience uses local browser storage to save your projects. To avoid losing saved work, do not clear your browser's local storage or cookies. To learn more about Guided Product Selection, explore this page.

Compliance & Certifications

Although products with certain combinations of options and features will meet or comply with these standards and/or certifications, not every combination of options and features will result in such compliance.  If you have any questions about your particular product, please contact our Customer Care Dept. at 1-855-ONE-ZURN (United States) or 1-877-892-5216 (Canada) for confirmation.

ADA Compliant Options Available Yes
Product Certification Options Available cUPC, ASSE 1037 / ASME A112.1037 / CSA B125.37, ASSE 1037/ ASME A112.1037/ CSA B125.37
WaterSense Compliant Options Available Yes

Media

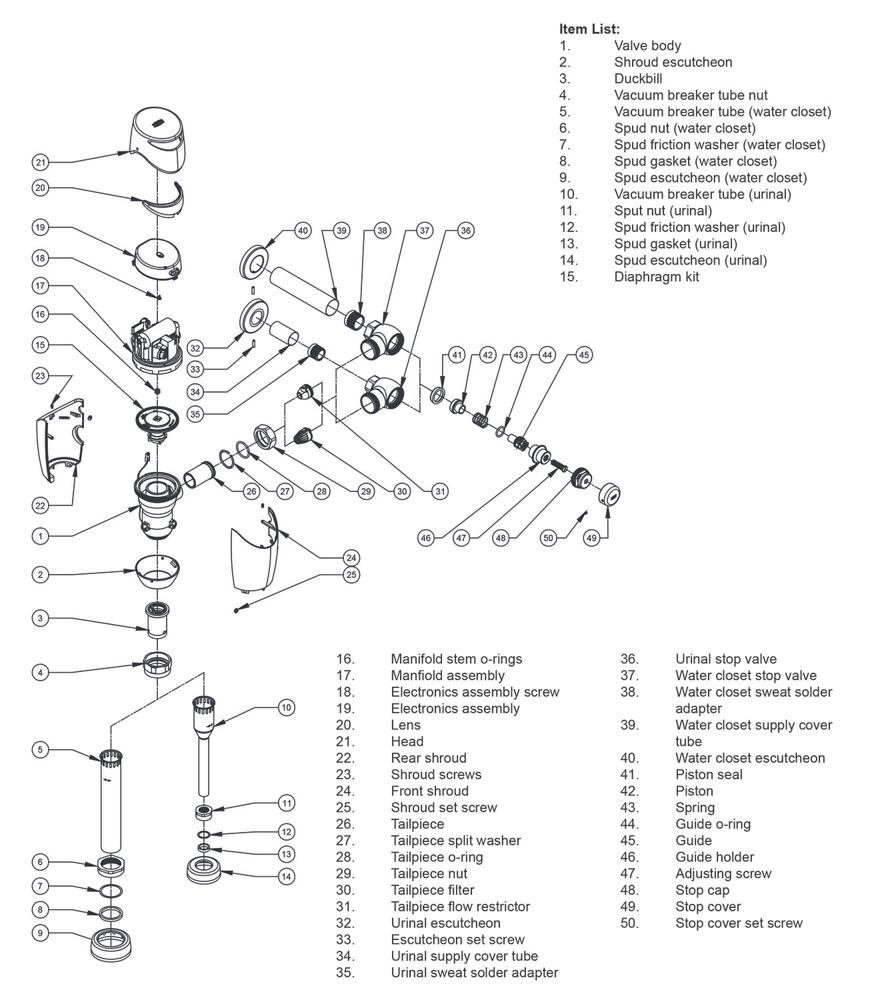

Repair Parts

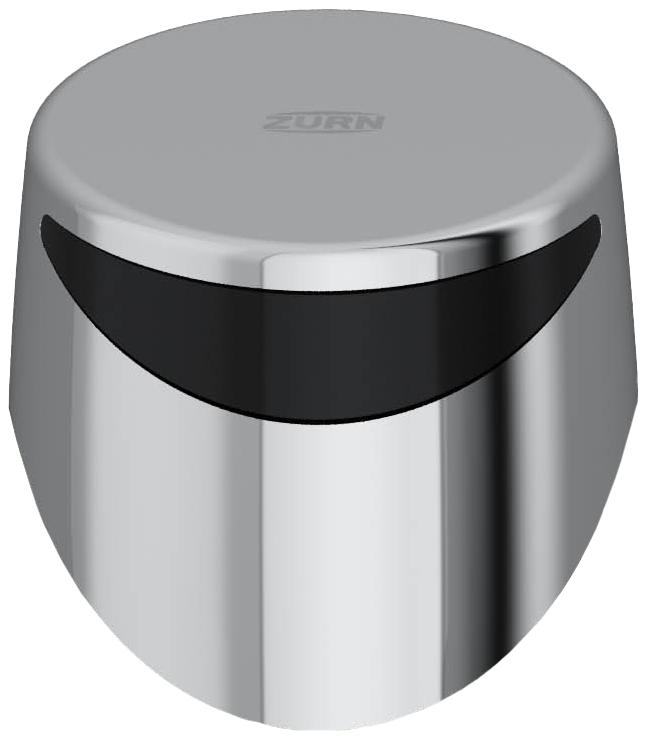

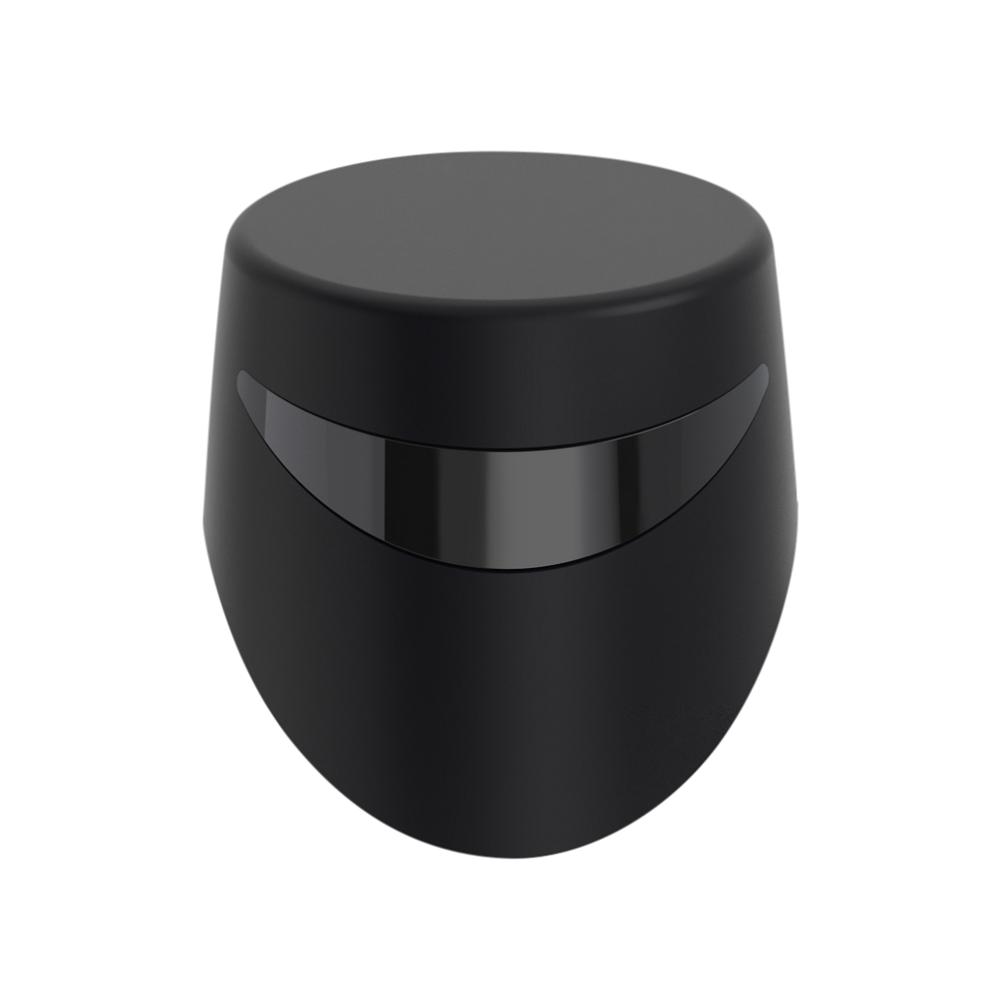

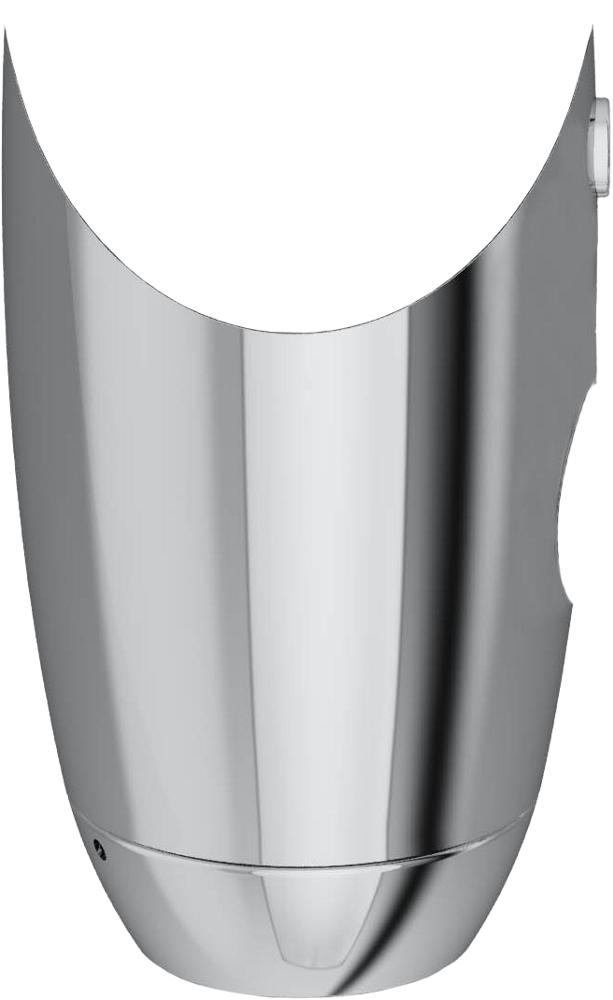

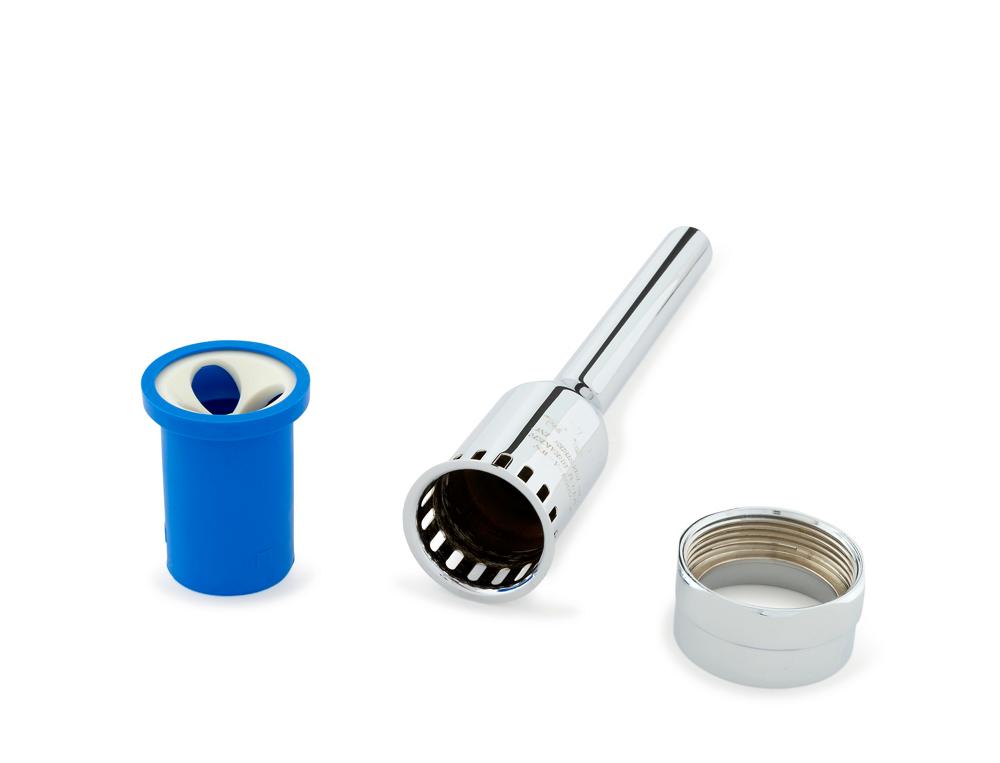

Top Mount Exposed Sensor Flush Valve for Water Closet With Gear-driven Ceramic Cartridge, Hydropower, AquaVantage® Diaphragms Parts
