ZHYD95-W2

Connected Concealed Sensor Flush Valve for Concealed 3/4" Back Spud Urinal with Gear-Driven Ceramic Cartridge, Hydropower, AquaVantage® Diaphragm

ADA Compliant

Create a clean, modern restroom aesthetic with a concealed flush valve designed to deliver reliable, hands-free performance throughout the life of the commercial restroom. This smart connected hydropowered concealed sensor flush valve for back spud urinals requires no hard wiring or battery replacement, which means lower installation and maintenance costs. Select from three wall plate configurations—chase access, front access and retrofit options—to best match your project's installation and maintenance needs. The gear-operated flush valve features a clog-resistant filtered diaphragm. It is sensor activated to support a more hygienic environment by eliminating touch points. Pair with Hydro•X Power® faucets to create a fully hydropowered restroom and maximize sustainable restroom goals. Customize usage settings using Zurn Elkay's Bluetooth app and view real-time data remotely with plumbSMART™.

Read More

Where to Buy

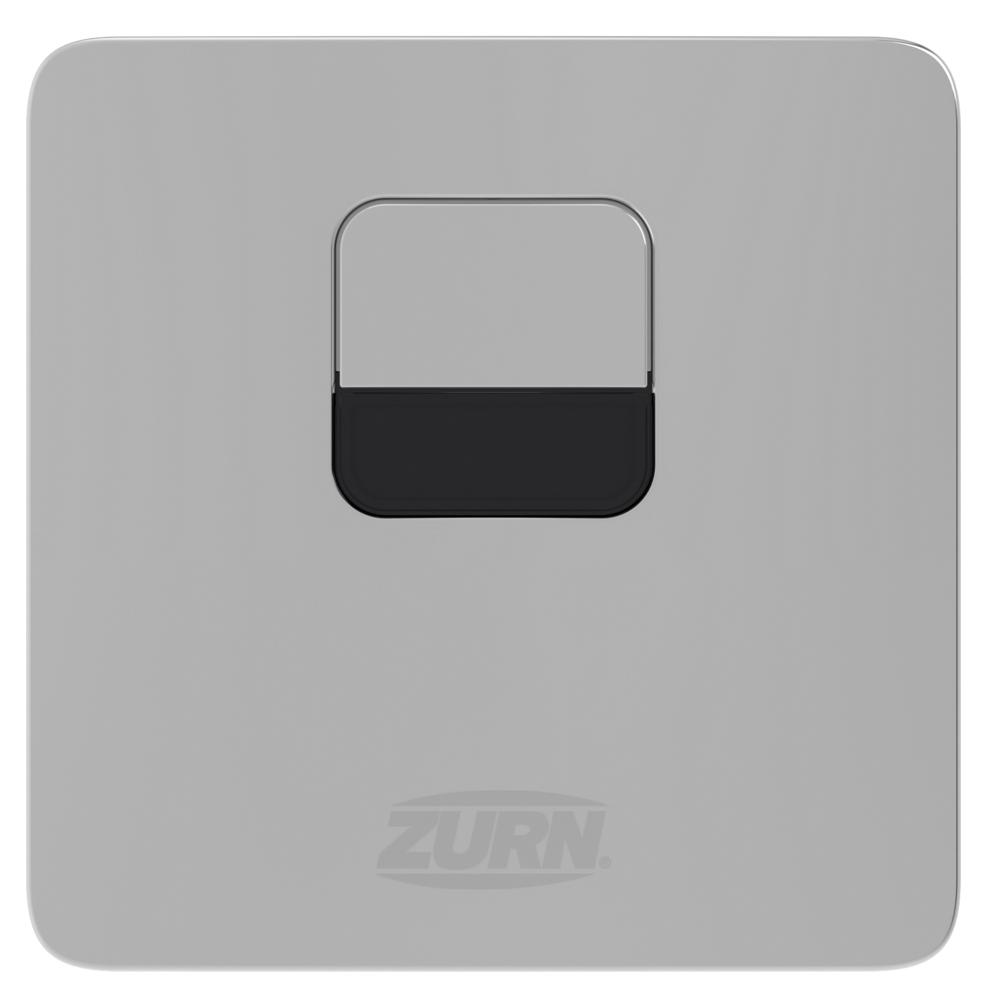

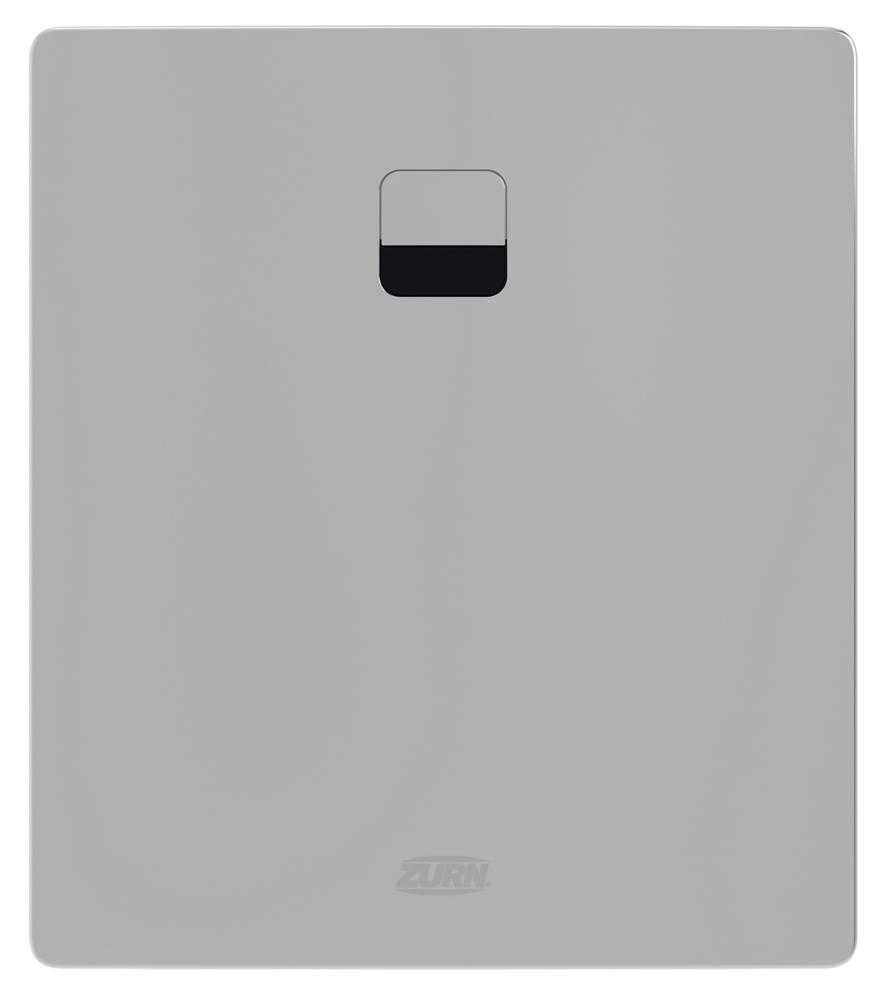

  • Vandal-Resistant, Contemporary Designs: Available with 5" × 5" chase access (-SP), 11" × 12.5" front access (-LP), or 13" × 17" retrofit (-BX17) wall plates. -SP and -LP options are offered in chrome-plated, brushed nickel, and matte black PVD finishes, while -BX17 is available in stainless steel.
  • Hydro•X Power® technology delivers sustainable performance by providing renewable, uninterrupted hydropower designed to last the life expectancy of a commercial restroom

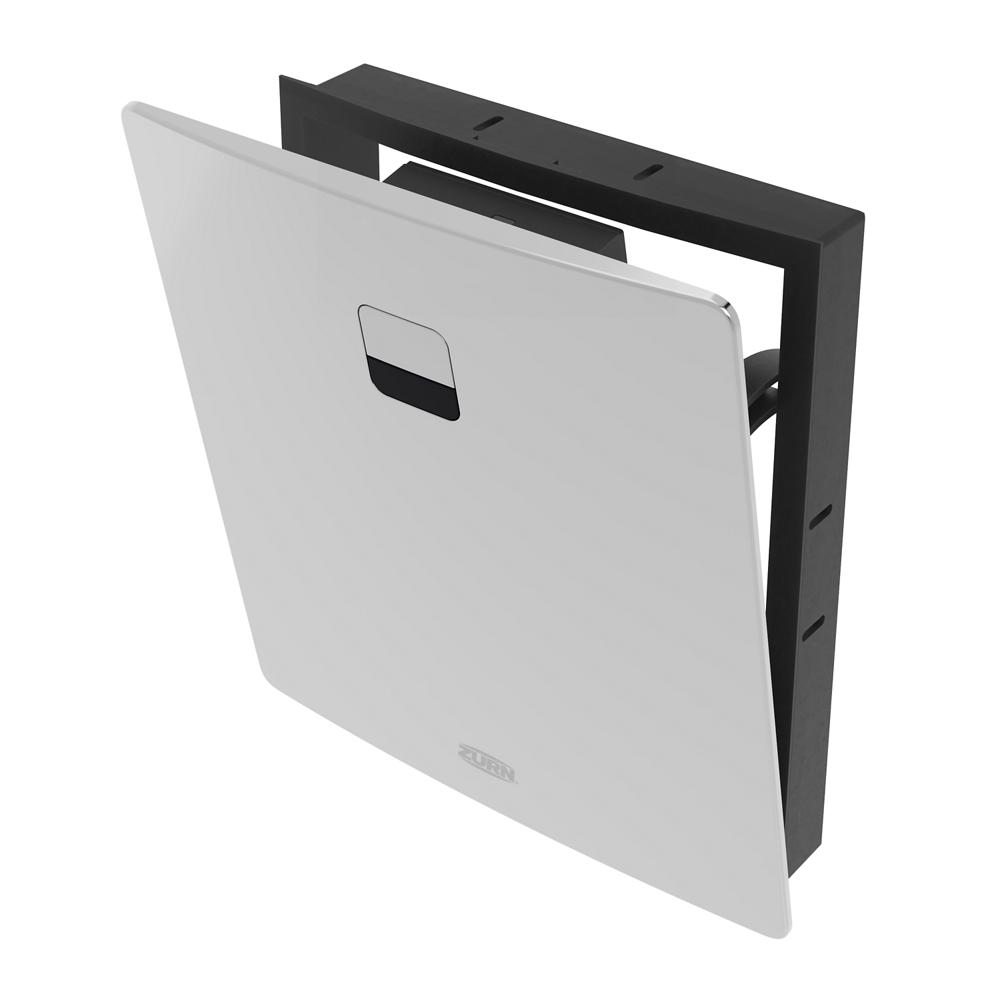

  • Architectural front access wall plate option (-LP suffix) eliminates the need for plumbing chase access to install and service valve, with hidden fasteners for clean aesthetic and EZ access hinged opening mechanism for quick service access
  • Concealed flush valve is also furnished with labor-saving, flexible stainless-steel outlet piping standard for easy front-of wall-installation, 1” wheel control stop with internal siphon-guard protection, sweat solder kit and high-pressure vacuum breaker assembly for 3/4” back spud inlet
  • Uses EZ Gear technology, a gear-driven ceramic cartridge that is less susceptible to debris and buildup for easy maintenance; outlasts and outperforms solenoids
  • Industry-leading, filtered AquaVantage® diaphragm, gaskets and seals are made of chemical-resistant thermoplastic elastomer, which lasts 8-10 times longer than traditional rubber, reducing maintenance costs
  • Bluetooth app standard for point-of-use wireless power source status, on-demand or automatic line flushing, timeout and sensor sensitivity settings
  • Smart Connected Flush Valve: Save time and resources with remote monitoring and real-time usage insights to your connected plumbing ecosystem including automated line flushing and intelligent continuous flush alerts
  • Electronic override button delivers on-demand manual flushing, powered by Hydro•X
  • Standard 24-hour line flushing to help minimize stagnation and maintain fixture trap seals to protect against sewer gases during periods of inactivity
  • Standard 24-hour line flushing to help minimize stagnation and maintain fixture trap seals to protect against sewer gases during periods of inactivity
  • Available in urinal flush volumes 0.125 gpf, 0.5 gpf, 1.0 gpf
+ View More Features

Configure My Specs

Configure your product to generate spec sheets, BIM files, EPDs, HPDs, and installation instructions - all in a single download. This experience uses local browser storage to save your projects. To avoid losing saved work, do not clear your browser's local storage or cookies. To learn more about Configure My Spec, explore this page.

Compliance & Certifications

Although products with certain combinations of options and features will meet or comply with these standards and/or certifications, not every combination of options and features will result in such compliance.  If you have any questions about your particular product, please contact our Customer Care Dept. at 1-855-ONE-ZURN (United States) or 1-877-892-5216 (Canada) for confirmation.

ADA Compliant Options Available Yes
