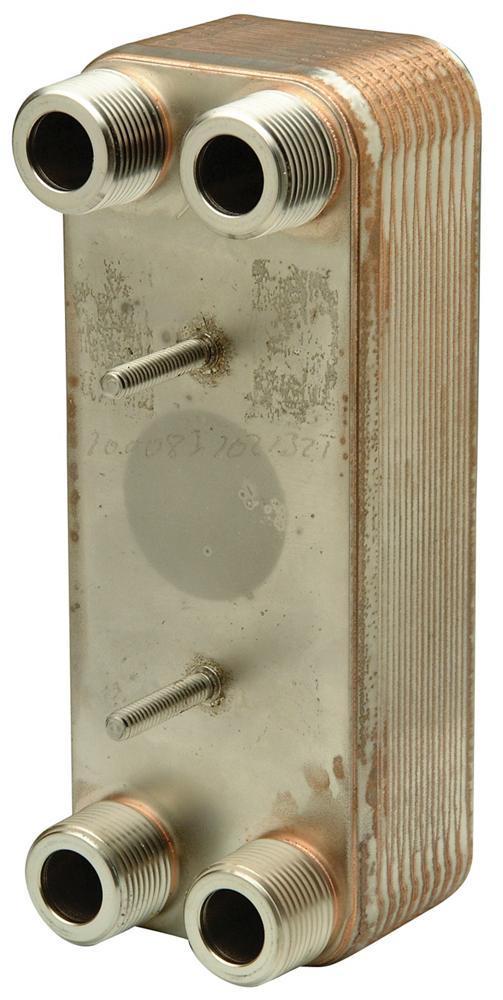

QHPHE

Heat Exchanger

Brazed plate heat exchangers provide separation between boiler water and heating panel protecting the water source

Read More

Where to Buy
  • Plate heat exchanger for radiant heat systems
  • Provides separation between boiler water and the radiant panel, capacity is 100,000BTU/h with 180°F boiler water and 140°F radiant panel temperature
  • Boiler water side pressure drop is 3.43 PSI @ 6.7 GPM; radiant panel side pressure drop is 6.04 PSI @ 9.7 GPM
  • Maximum working pressure is 435 PSI, maximum working temperature is 365°, maximum flow rate is 18 GPM
