Z8701-9B-PC

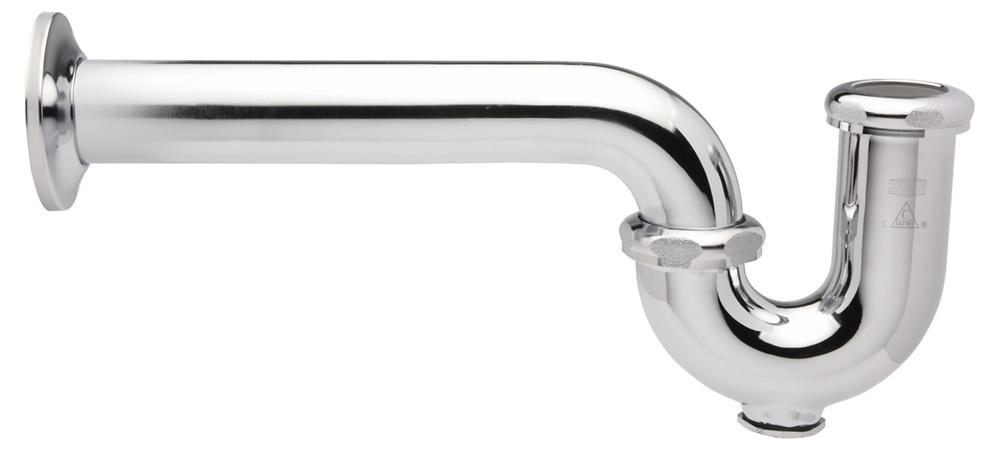

P-Trap with Wall Bend and Cleanout, 1 1/4” Inlet, 1 1/2" Outlet, 17 Gauge, Brass Nuts, Shallow Escutcheon, 12"

When it comes to durable finish plumbing supplies, Zurn has the parts you need to complete your commercial project. Constructed of chrome-plated cast brass, Zurn’s Z8701-9B-PC P-trap with wall bend enables water to form a seal in the drain trap. P-traps stop sewer gas from rising up through the drain, eliminating odors that may otherwise be present. The P-trap features a cleanout, brass nuts, and a shallow escutcheon with a compression inlet. For genuine, reliable parts trust Zurn.

Read More

  • Blocks sewer gases from escaping into room
  • Cleanout plug provides access for clearing clogged line
  • Lack of moving parts results in low maintenance and repair costs
  • Chrome-plated cast brass construction for long-lasting commercial usage
  • Brass nuts and shallow escutcheon
  • 17-gauge arm
  • 12 inches from wall to outlet center
  • 1 1/4” inlet (from drain), 1 1/2" outlet (to wall)
  • Polished chrome-plated finish
  • Chrome-plated, cast body p-trap with cleanout
  • Chrome-plated, cast body p-trap with cleanout
  • Shallow escutcheon with compression inlet
  • 3-year limited warranty
+ View More Features

Compliance & Certifications

Although products with certain combinations of options and features will meet or comply with these standards and/or certifications, not every combination of options and features will result in such compliance.  If you have any questions about your particular product, please contact our Customer Care Dept. at 1-855-ONE-ZURN (United States) or 1-877-892-5216 (Canada) for confirmation.

Product Certification Options Available ASME A112.18.2 / CSA B125.2, CSA B125.2
