475DA

Reduced Pressure Detector Backflow Preventer

475DA

Reduced Pressure Detector Backflow Preventer

The 475DA/475DAV Reduced Pressure Detector Backflow Assembly is utilized in high hazard, fire protection applications to protect against both backsiphonage and backpressure. The 475DA is shaped in the n-Pattern for new or retrofit installations in compact spaces, while the 475DAV is shaped in the z-Pattern and installed vertically in a flow up orientation. Both models include a small footprint for quick and easy fire protection retrofit applications, as well as a metered bypass system to detect leaks and any unauthorized water use, saving you valuable time and money on repairs and maintenance costs.

BIM Resources

Small footprint for easy Fire Protection retrofits

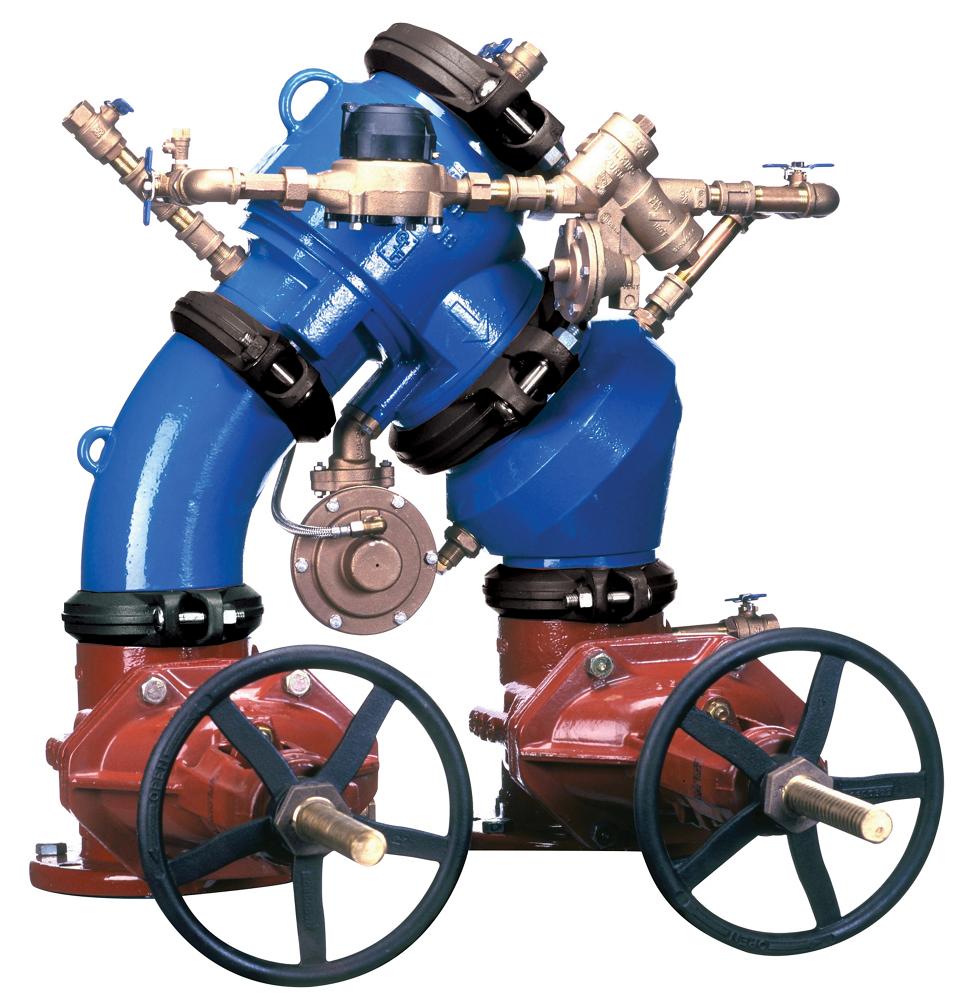

475DA assembled in "N" pattern
475DAV allows for vertical up flow in a "Z" pattern

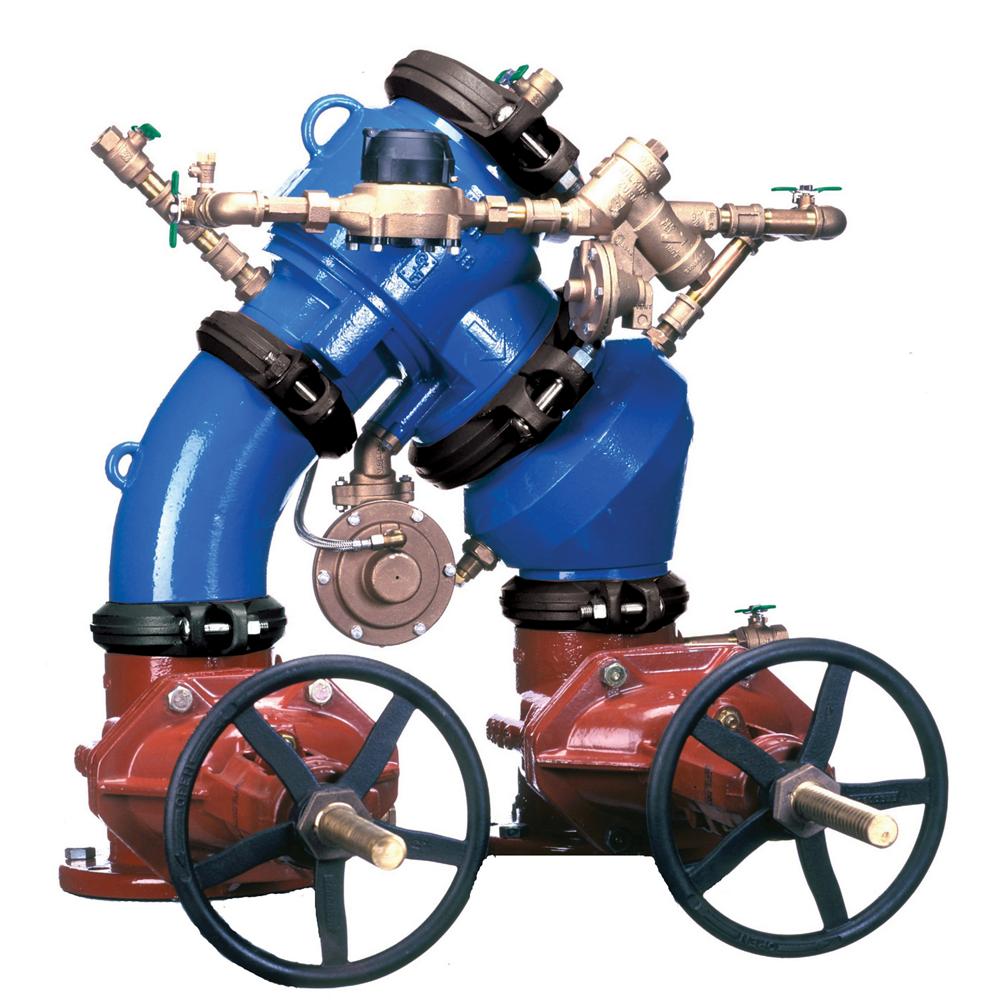

8-475DA

Reduced Pressure Detector Backflow Preventer

Product Specs

WHERE TO BUY

BIM / 3D Models / 2D Drawings

CAD Installation Drawing (DXF)

Related Documents

RK6-475DA-BP-LM	Bypass Assembly used with RK6-475DA-BP-LM.	Where to Buy
RK6-375-SEAT1-ASSY	Seat Assembly #1 Poppet used with RK6-375-SEAT1-ASSY. Kit Contains Seat Assembly #1 Poppet.	Where to Buy
RK6-375DAC	Complete Rubber Repair Kit, 6" 375ADA used with RK6-375DAC. Kit Contains O-Ring, Seat (x2), O-Ring, Poppet Bolt (x8), and Seal Ring (x2).	Where to Buy
RK6-375CK1	#1 Check Assembly Repair Kit, 6" 475DA and 475DAV used with RK6-375CK1. Kit Contains Seat Retainer #1, O-Ring, Seat, Bolt, Poppet Retainer (x4), Handle, #1 Poppet Assembly, Washer, Poppet Bolt (x4), O-Ring, Poppet Bolt (x4), Poppet Retainer, Seal Ring, Seat Assembly, #1 Poppet.	Where to Buy
RK6-350-SEAT2-ASSY	#2 Seat Assembly Repair Kit, 6" 375ADA used with RK6-350-SEAT2-ASSY Kit Contains Seat Retainer #1 (x6).	Where to Buy
RK6-350DA	Main & Bypass Rubber Repair Kit 6" 350DA used with RK6-350DA. Kit Contains O-Ring, Check (x2), O-Ring, Poppet Bolt (x8), Seal Ring (x2), and Bypass Rubber Repair Kit.	Where to Buy
RK4-RV475-HOSE	Relief Valve Hose Repair Kit, 4" and 6" 475DA and 475DAV used with RK4-RV475-HOSE. Kit Contains Sensing Tube, Elbow, and Nipple.	Where to Buy
RK4-475-TUBE-ASSY	Pitot Tube Repair Kit, 4" - 10" 475DA and 475DAV used with RK4-475-TUBE-ASSY. Kit Contains Pitot Tube Assembly.	Where to Buy
RK8-RV-ASSY	Relief Valve Assembly Repair Kit, 8" and 10" 375DA used with RK8-RV-ASSY. Kit contains O-O-Ring, Relief Valve, Relief Valve Assembly, Bolt, Relief Valve (x2), and Sensing Tube Fitting.	Where to Buy
RK8-RV475-HOSE	Braided Hose Repair Kit, 8" and 10" 475 and 475V used with RK8-RV475-HOSE. Kit contains Sensing Tube, Elbow, and Nipple.	Where to Buy
RK8-RV475-ASSY	Relief Valve Assembly Repair Kit, 8" and 10" 475 and 475V used with RK8-RV475-ASSY. Kit Contains Relief Valve Elbow, O-Ring, Elbow/Relief Valve (x2), Bolt, Elbow/Relief Valve (x4), and Relief Valve Assembly.	Where to Buy
RK8-LBF-VALVE-COVER	Cover used with RK8-LBF-VALVE-COVER.	Where to Buy
RK8-475DA-BP-LM	Bypass Assembly used with RK8-475DA-BP-LM.	Where to Buy
RK8-375-SEAT1-ASSY	#1 Seat Assembly Repair Kit, 8" and 10" 375A used with RK8-375-SEAT1-ASSY. Kit Contains Seat Assembly, and #1 Poppet.	Where to Buy
RK8-375DAC	Complete Rubber Repair Kit, 8" and 10" 375ADA used with RK8-375DAC. Kit Contains O-Ring, Seat (x2), O-Ring, Poppet Bolt (x12), Seal Ring (x2), Bypass Rubber Repair Kit, and Relief Valve Rubber Repair Kit.	Where to Buy
RK8-375CK1	#1 Check Assembly Repair Kit, 8" and 10" 475DA and 475DAV used with RK8-375CK1. Kit Contains Seat Retainer #1 (x4), O-Ring, Seat Assembly, Bolt, Poppet Retainer (x6), Washer, Poppet Retainer (x6), O-Ring, Poppet Retainer (x6), Poppet Retainer, Seal Ring, Seat Assembly #1 Poppet, Washer, and Seat Retainer (x4).	Where to Buy
RK8-350DA	Main & Bypass Rubber Repair Kit 8" - 12" 350DA used with RK8-350DA. Kit Contains O-Ring, Check (x2), O-Ring, Poppet Bolt (x12), Seal Ring (x2), and Bypass Rubber Repair Kit.	Where to Buy
