950XLT2

Double Check Backflow Preventer

Product Image 600 x 600 - 34_1-950XLT2 Product Image 600 x 600 - 114_2-950XLT2 Product Image 600 x 600 - 114_2-950XLT2 another image Youtube Thumbnail

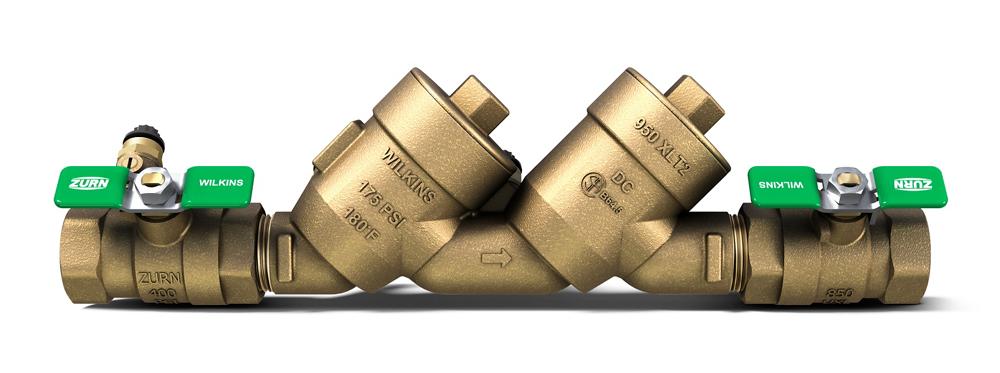

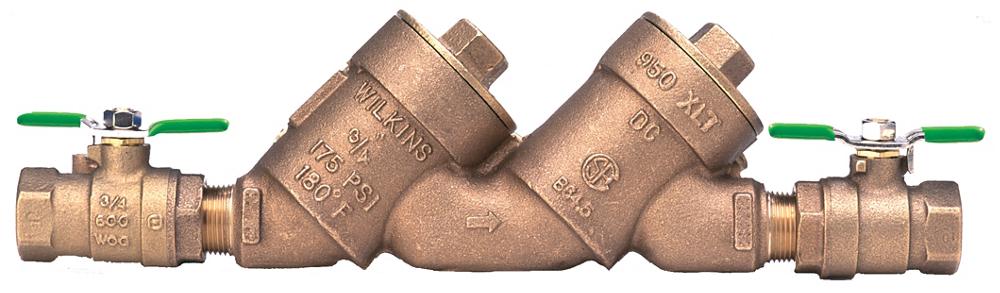

950XLT2

Double Check Backflow Preventer

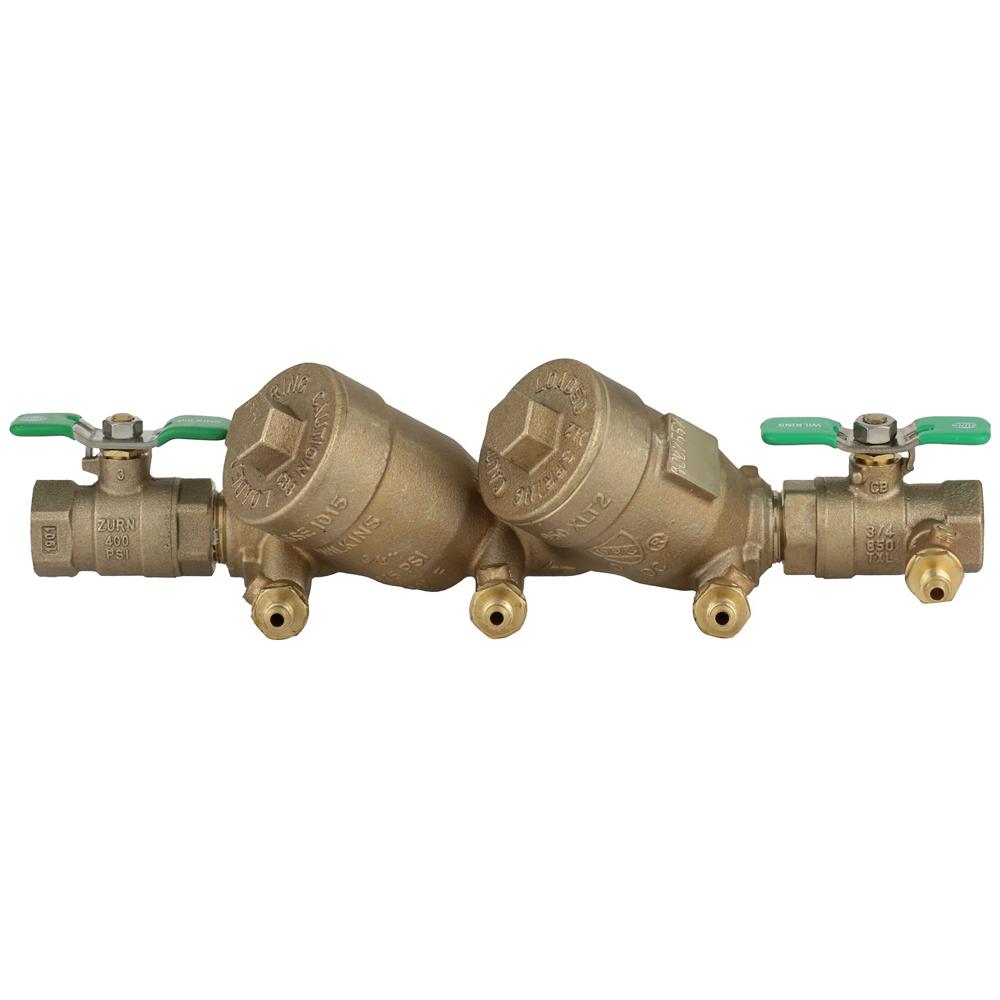

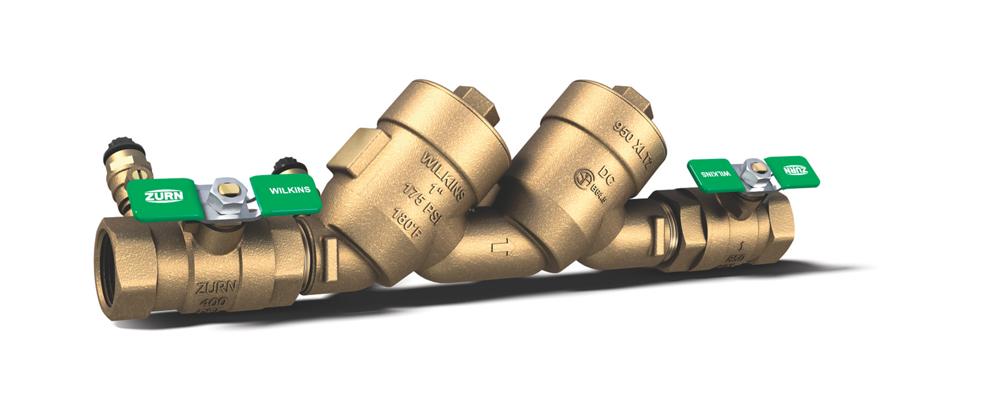

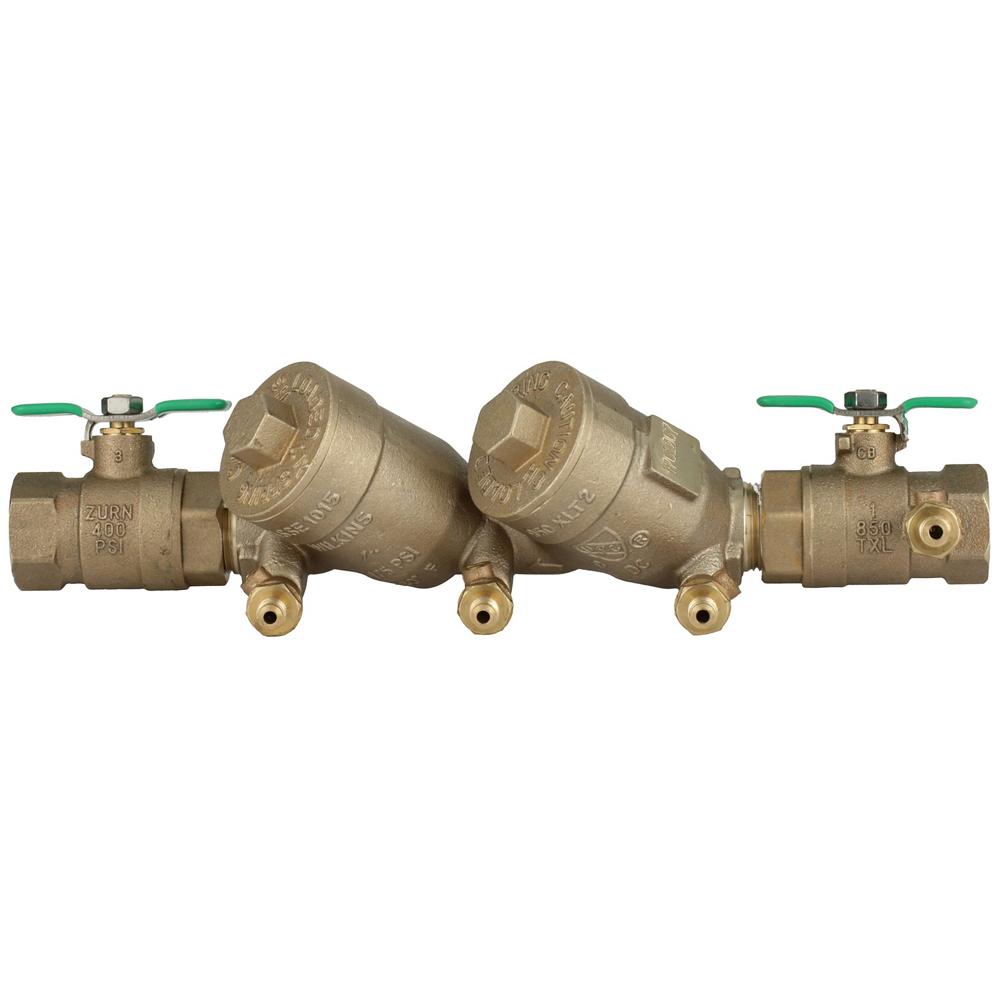

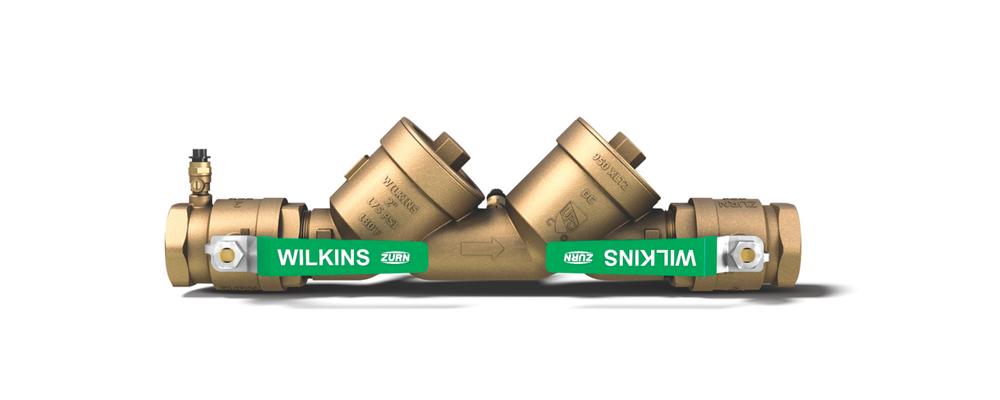

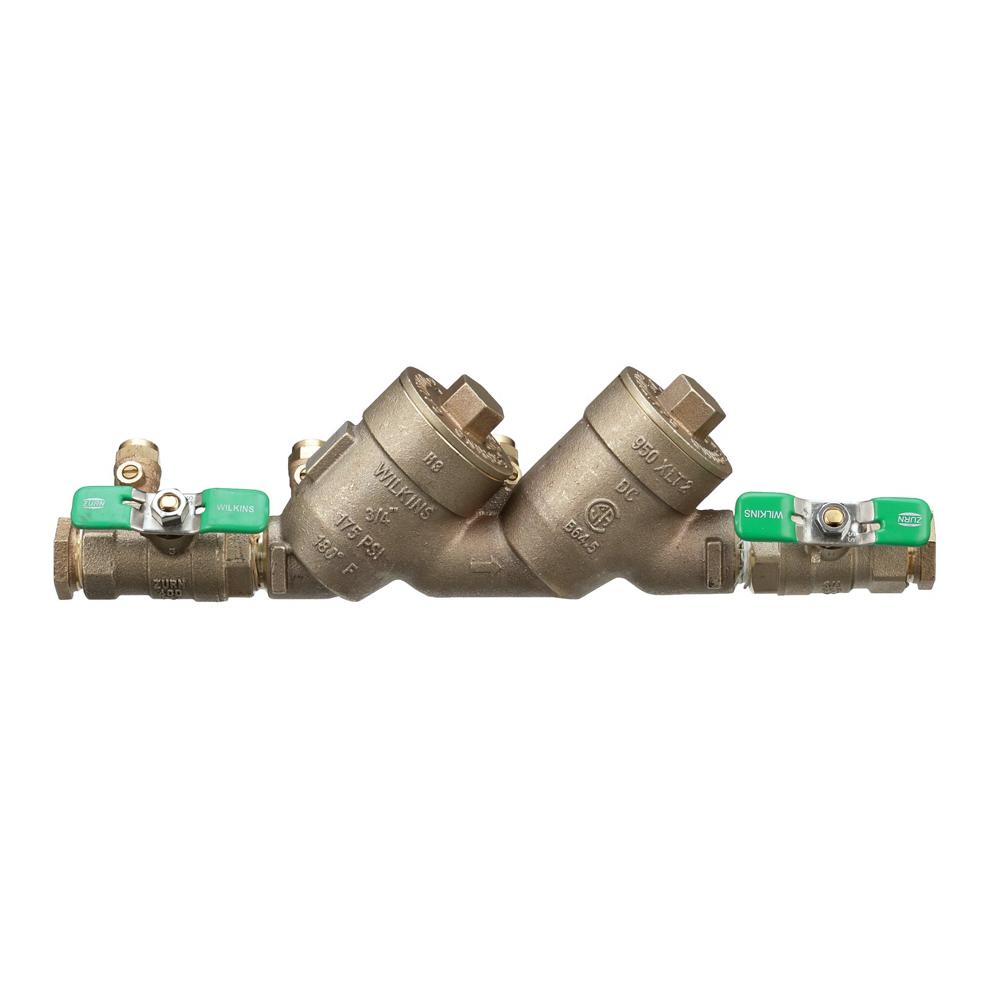

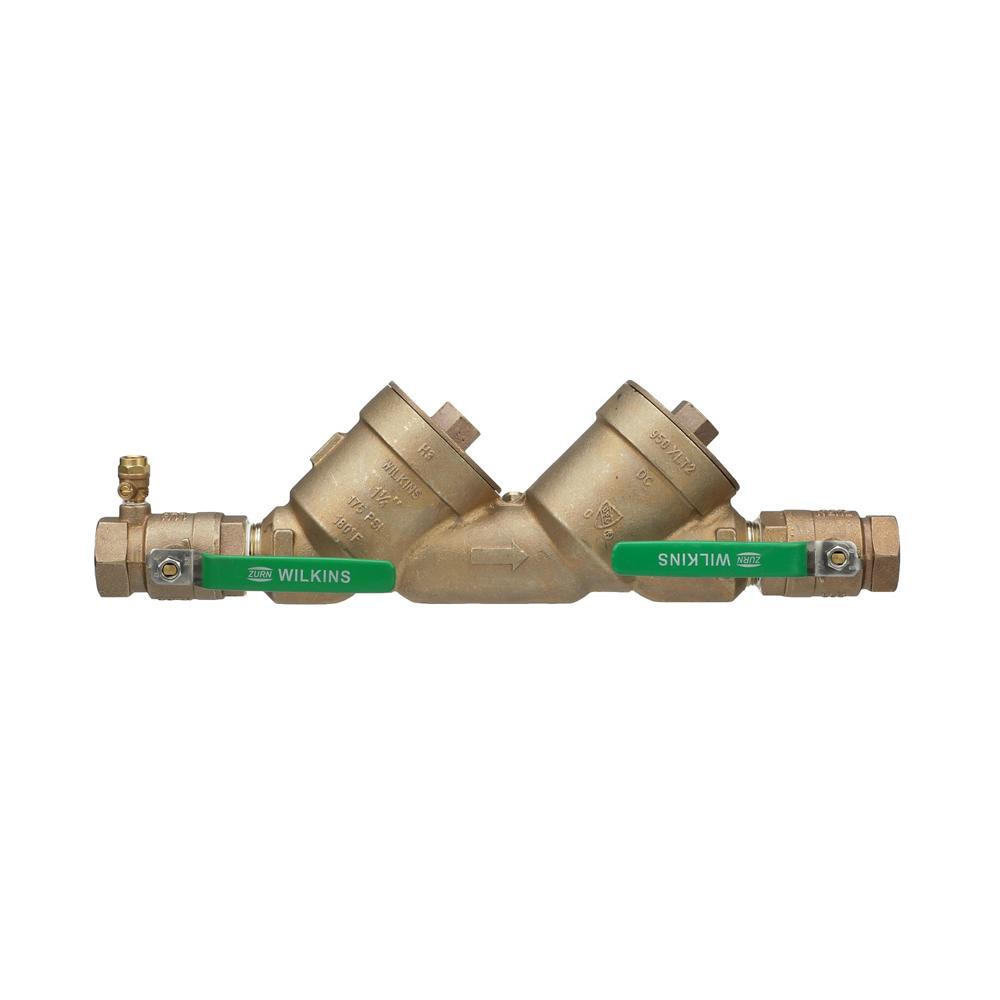

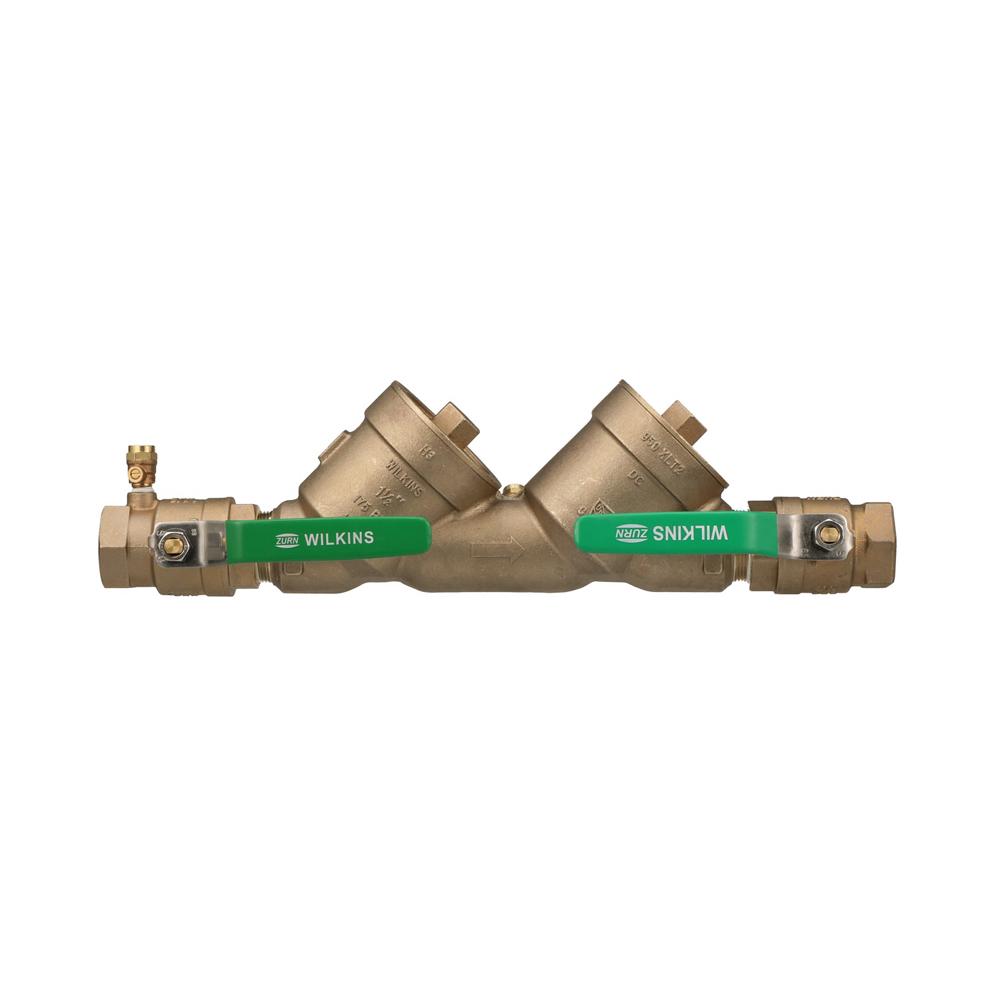

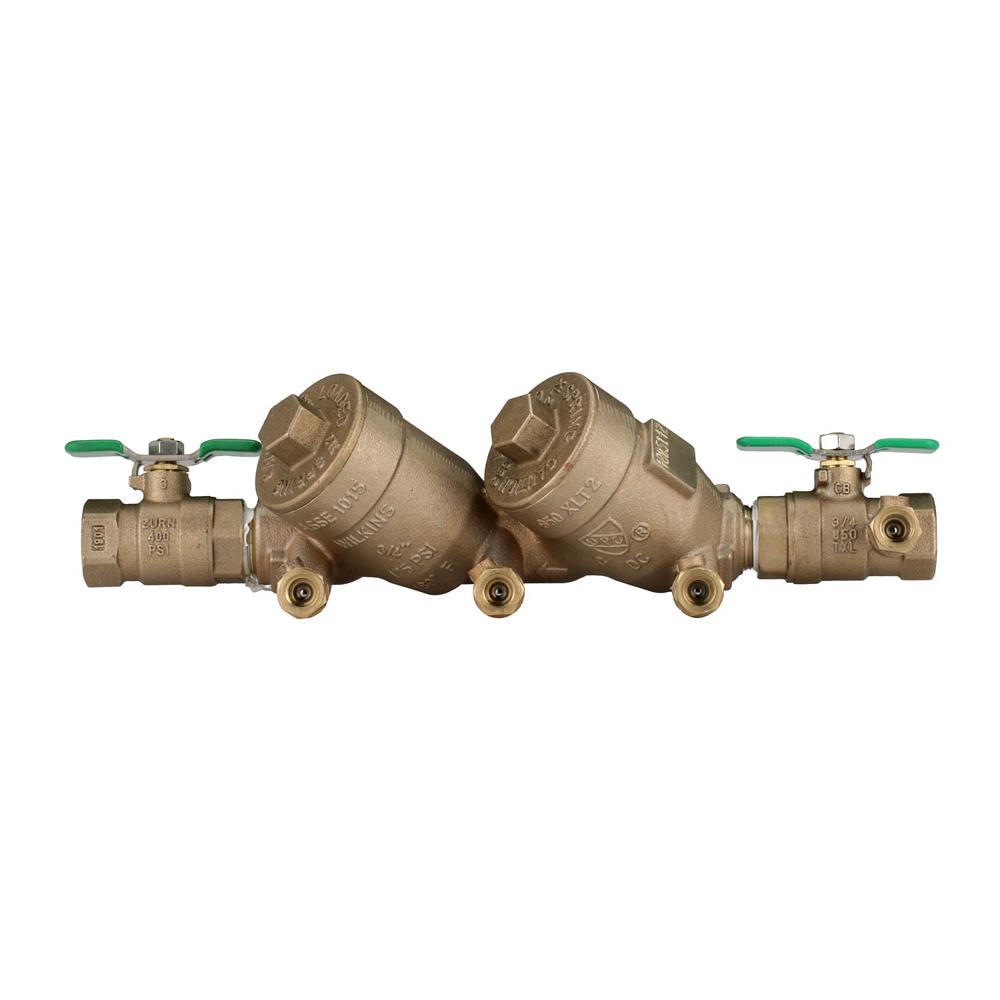

The 950XLT2 Double Check Valve Assembly includes top access check covers for easy maintenance access, is utilized in low health hazard potable water applications, and is suitable for below grade installation in standard valve boxes. The 950XLT2 protects against both backsiphonage and backpressure while the test cock plug protects against fouling caused by insects, dirt, and debris. It includes corrosion-resistant stainless steel springs, fasteners, and ball valve handles. Features of the 950XLT2 include a maximum working water pressure of 175 psi, hydrostatic test pressure of 350 psi, and a maximum working water pressure of 180°F.

  • Top access double checks for hassle-free maintenance and repairs
  • Seats and silicone seal rings are fully replaceable for reduced maintenance costs
  • Fits within standard meter boxes
  • Construction offers corrosion-resistance and winterization
  • Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California
  • ASSE® Listed, cUPC® Listed, CSA® Certified, AWWA Compliant, Safe Drinking Water Act Compliant
  • We recommend the upgraded model 950XL3 for new construction
RK14-QTP

Quick Test Backflow Fittings (Thermoplastic) for backflow preventers 1/4" - 2"

To view all options, see the Specification Sheet - BF-QTP

112-850T

Ball Valve, Tapped used with 112-850T.

Lead Free Lead Free
Retrofit or Replacement Retrofit
MasterSPEC Find us in MasterSpec®
Zurn Wilkins Zurn Wilkins
