DUXLM

DUXLM Dielectric Union Pipe Fitting

Find us in MasterSpec®
Lead Free
Zurn Wilkins

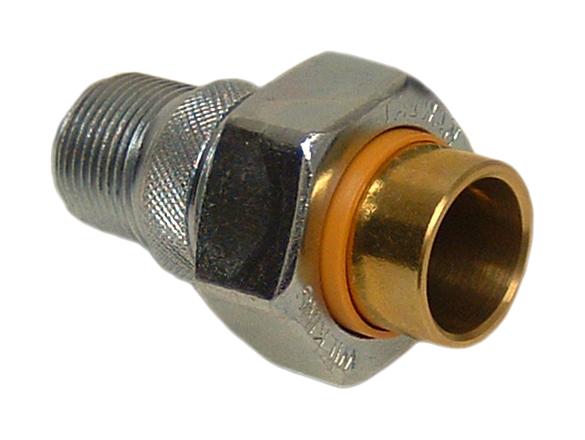

The DUXLM Dielectric Union Pipe Fitting is utilized on potable water applications for protection against piping system deterioration caused by galvanic and stray current corrosion. Required where dissimilar metals are used in piping systems, materials for the DUXLM include a zinc-coated steel body, union nut, bolts, and nuts, as well as cast steel flanges, low lead brass tailpiece, nylon insulator, and EPDM gaskets. Its maximum working water pressure is 250 psi for threaded fittings and 175 psi for flanged fittings, with a 180°F maximum working water temperature. The DUXLM comes standard with a male iron pipe x female copper sweat joint.

  • Flexible design couples dissimilar piping materials for ultimate convenience
  • Designed for lasting wear on potable water applications
  • Protects against pipe deterioration from galvanic and stray current corrosion
  • Zinc-coated steel body resists corrosion
  • Male iron pipe x female copper sweat
  • Certified to NSF/ANSI 372 by IAPMO R&T
