Less manual, more control - plumbSMART is your single source for managing and monitoring your connected plumbing ecosystem. You and your team can keep an eye on your Zurn Connected Products' operational statuses, analyze performance trends, and ensure everything is under control.


SmartPro Above Ground Installation

SmartPro Monitoring Systems

The Zurn SmartPro Monitoring System is the easiest way to monitor grease, oil and sediment interceptors. Available with wireless radio, cell network or gateway cloud connectivity, this monitoring system allows building owners and maintenance officials to check pollutant levels in the interceptor tank with the push of a button.

Taking Care of Business

Invest in a system that works for you and your business. Designed to monitor everything from grease, oil and sediment levels to temperature of the tank, the SmartPro system supports pumping cost efficiency while maximizing uptime for long-lasting dependability.

Markets We Serve

  • Food and Beverage Industries
  • Quick-Serve Restaurants
  • Commercial Buildings
  • Recreational Facilities and Resorts
  • Health Care Facilities
  • Vehicle Maintenance Facilities
  • Fire Stations, Schools, Hospitals and Other Public Service Buildings
  • Transportation and Industrial Facilities
Savings

SAVINGS
Save labor and maintenance costs with real-time data about what's happening inside the interceptor

Safety

SAFETY
Maintain total compliance and peace of mind by sharing data and pump-out reporting with regulators

Stewardship

STEWARDSHIP
Protect associates, regulators and the environment from pollutants and toxic odors with real-time data about interceptor contents and performance.

Style

STYLE
Easier installation and remote monitoring of interceptor conditions.

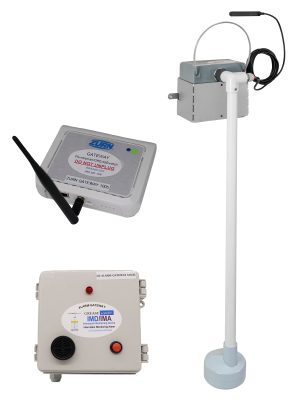

SmartPro G5 Wireless Alarm

Ideal for large portfolio users or multi-unit monitoring, the SmartPro G5 Wireless Alarm is a unique LoRa Gateway network monitoring system that assists in managing oil, grease, sediment and liquid levels inside commercial interceptors. The ultrasonic sensor features a universal design that allows for trouble-free installation in both existing interceptor retrofits and new builds.

The battery-operated sensor mounts inside the interceptor and requires no external phone line or power requirements. The interceptor tank is powered by a 3.9-volt lithium battery for long-lasting dependability. Available with an assortment of alarm options, the SmartPro G5 offers true level analytics and data for total peace-of-mind compliance.

SmartPro G5 Wireless Alarm

Unit Options:

G5-4650-Z SmartPro G5 Tank with Zurn LoRa Gateway and Hardware Bag

G5-4652 SmartPro G5 Tank with LoRa Gateway
and Hardware Bag

G5 Model 4670 SmartPro G5 Tank with Separate LoRa Alarm

G5 Model 4660 SmartPro G5 Tank with Combination LoRa Gateway and Alarm

Monitoring

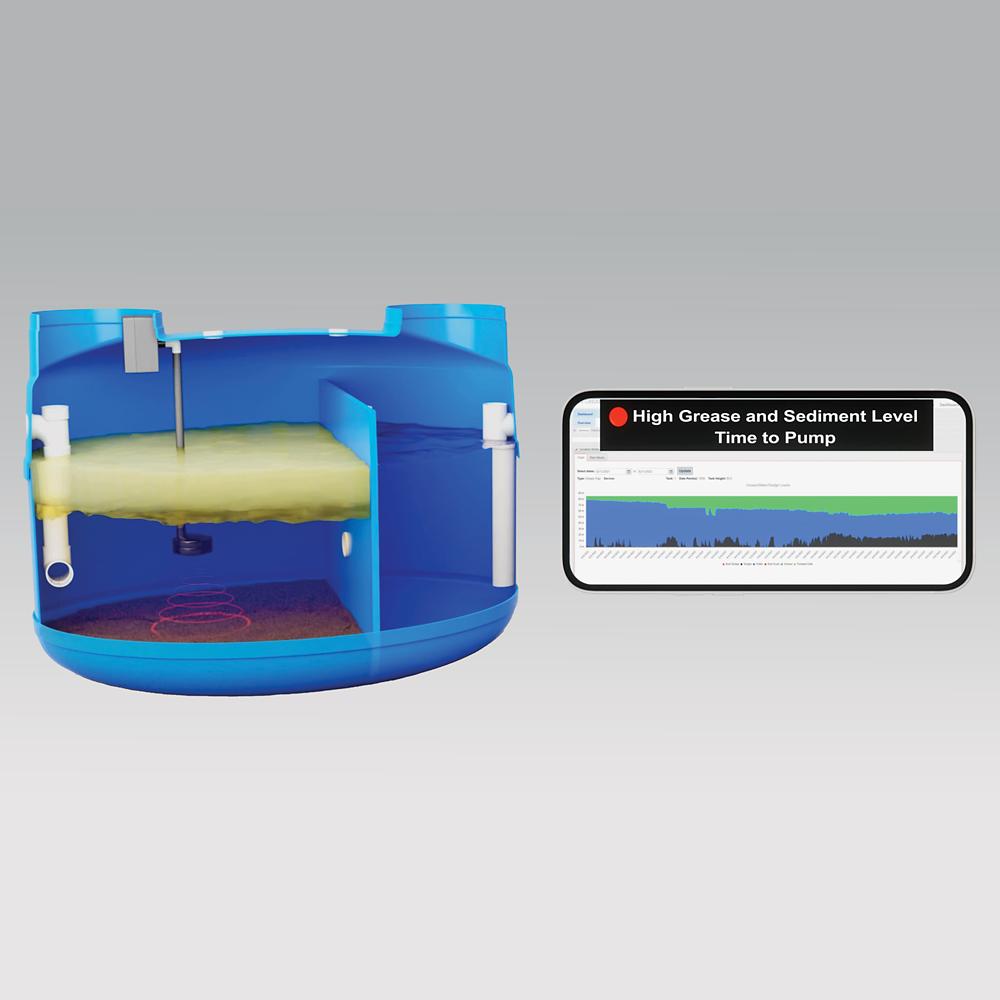

Patented ultrasonic monitoring provides real-time data on the interceptor’s grease, oil, sludge, total liquid levels and temperature.

Alarms

Audio and visual alarms, as well as digital notifications, signal when it is time to pump or when liquid level is too high.



Lora Based Gateway

Sensor communicates data wirelessly with LoRa-based gateway.

Cloud-based portal

Cloud-based portal hosts all data for streamlined information access and management.

Long-life lithium battery

Long-life lithium battery extends the system’s functionality for lasting performance.



4630 SmartPro G4 Wireless Alarm

The 4630 SmartPro G4 Wireless Alarm is a unique radio frequency monitor and alarm system that assists in managing oil, grease and sediment levels inside commercial interceptors. The battery-operated sensor mounts inside the interceptor and communicates wirelessly to the control panel.

The control panel offers true-level analytics, providing facility personnel with insight into the interceptor’s service needs. It can also connect to a Building Automation System for easier access to data. The end-to-end data encryption supports secure operation and data collection.

4630 SmartPro G4 Wireless Alarm
Monitoring

Patented ultrasonic monitoring provides real-time data on the interceptor’s grease, oil and sediment levels, as well as temperature and battery life.

Alarms

Audio and visual alarms signal when it is time to pump.

Lora Based Gateway

Sensor communicates data wirelessly through radio between the interceptor and the building’s control panel.

Long-life lithium battery

Long-life lithium battery extends the system’s functionality for lasting performance.

Long-life lithium battery

Control panel allows for remote alarm notification through connection to a Building Automation System.



4631 SmartPro G3 Wireless Alarm

Stay connected to your interceptor's performance with the 4631 SmartPro G3 Wireless Alarm. Easy to install, the SmartPro G3 transmits data via cell frequency with no external phone line or power requirements. A long-life lithium battery eliminates the need for wired connections for lasting performance.

The cloud-based portal hosts all necessary data for streamlined information access and management. Building managers and maintenance officials can receive email, text or cloud dashboard notifications that signal when it is time to pump, when the liquid level is too high or when the battery needs to be replaced.

4640 SmartPro G2 Wired Alarm
Monitoring

Patented ultrasonic monitoring provides real-time data on the interceptor’s grease, oil and sediment levels, as well as temperature and battery life.

Alarms

Audio and visual alarms signal when it is time to pump, enabling on-demand pumping.

Lora Based Gateway

Sensor communicates data efficiently through a hardwired connection between the interceptor and the building’s control panel.

Long-life lithium battery

Control panel allows for remote alarm notification through connection to a Building Automation System.

Long-life lithium battery

Local connection provides data security for total peace of mind.



4640 SmartPro G2 Wired Alarm

The 4640 SmartPro G2 Wired Alarm is the easiest way to manage interceptors. The hardwired system monitors the interceptor’s grease, oil, sediment levels and temperature, ensuring total peace of mind regulatory compliance.

The control panel offers true-level analytics, providing facility personnel with insight into the interceptor’s service needs. It can also connect to a Building Automation System for complete integration. For customers who value security, the hardwired connection between the interceptor and the control panel provides effective and secure data communication.

4631 SmartPro G3 Wireless Alarm
Monitoring

Ultrasonic monitoring provides realtime data on the interceptor’s grease, oil, sediment levels and temperature.

Lora Based Gateway

E-mail, text or cloud dashboard notifications signal when it is time to pump or when liquid level is too high.

Lora Based Gateway

Sensor communicates data wirelessly via cellular frequency with no external phone line or power requirements.

Long-life lithium battery

Long-life lithium battery extends the system’s functionality for lasting performance.

Long-life lithium battery

Cloud-based portal hosts all data for streamlined information access and management.



Models Wired or Wireless Power Alarms Data Transmission Monthly Fee Monitoring Single or Multi-unit Alarm Mode BMS Connectivity Retrofit (Y or N)
G2 Wired 120-volt power supply (plug) for in-building control panel High Grease/Oil High Sediment % Total Solids Local data access only None Monitor data on control panel Single Local audio and visual Yes Yes - Must run underground wire to interior control panel
G3 Wireless 3.9-volt lithium battery High Grease/Oil High Sediment % Total Solids Low Battery High Liquid Level Digital cellular telemetry Annual monitoring charge Monitor data on portal - cloud Single Portal No Yes
G4 Wireless 120-volt power supply (plug) for Gateway 3.9-volt long-life lithium battery for tank unit High Grease/Oil High Sediment % Total Solids Low Battery 900 Mhz RF transmission Local data access None Monitor data on control panel Single Local audio and visual Yes Yes
G5 Wireless 120-volt power supply (plug) for Gateway 3.9-volt long-life lithium battery for tank unit High Grease/Oil High Sediment % Total Solids Low Battery High Liquid Level LoRa Gateway transmission Annual monitoring charge Gateway Monitor data on portal - cloud Multi-unit Portal option for local audio and visual Yes Yes



  G2 G3 G4 G5 Gateway G5 with Zurn Gateway G5 Combo Gateway and Visual Alarm G5 Separate Gateway and Visual Alarm
Zurn Model Number 4640 4631 4630 Custom 4652-Z 4660 4670
Wired Connection
Wireless Connection
Battery Long-Life Lithium
Monitoring Charge ($300/yr.)
Audio Alarm
Visual Alarm
Grease Level Alarm
Sediment Level Alarm
Total Liquid Level Alarm
Temperature Alarm
Battery Life Alarm
Combination Alarms
BIM Connectivity Alarm
Battery Voltage Alarm
Interceptors Alarm (100 gallons or more)
Multi-unit Alarm
Retrofit Alarm

Proceptor Oil, Trease and Sediment Separator

Go with the Industry Pro

The Proceptor® oil, grease and sediment separator is designed to handle any installation, every application and all industry types. Available in a variety of sizes and styles, these Plumbing Code-certified gravity interceptors or PDI -certified hydromechanical interceptors, hold between 45-50% of their volume in fats, oil, grease and food particles without compromise to performance or the integrity of the system.

The patented fiberglass design is simple to clean, easy to maintain and withstands a variety of acidic foods and chemicals. They can be installed above or below ground and are backed by a no-nonsense lifetime warranty against failure due to corrosion or cracking.
